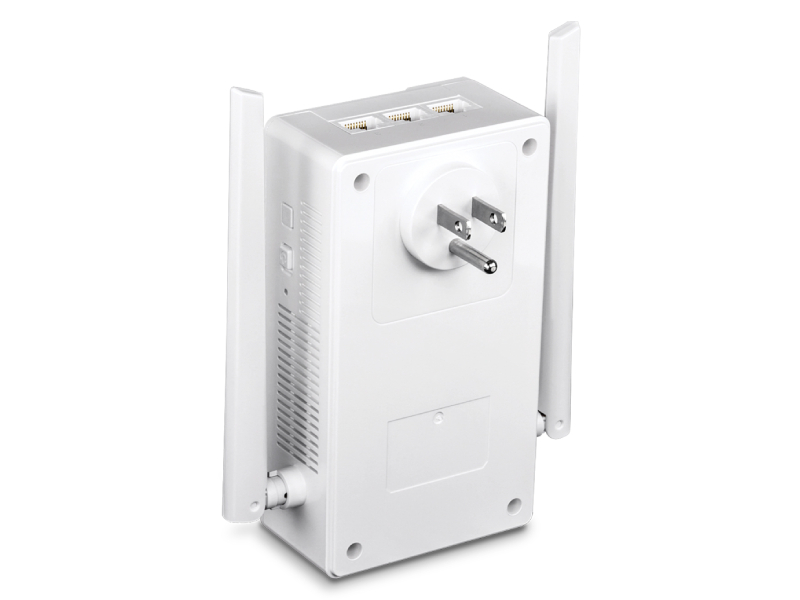

Trendent Kit wireless 1200 AV2 Powerline WiFi Everywhere - TPL-430APK
TPL-430APK (Version V2)
- Powerline 1200 networking over existing electrical lines

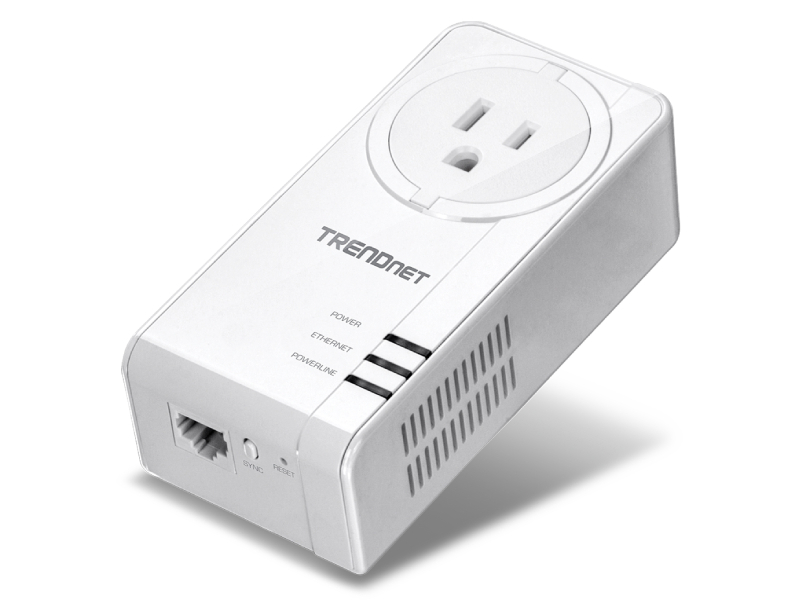

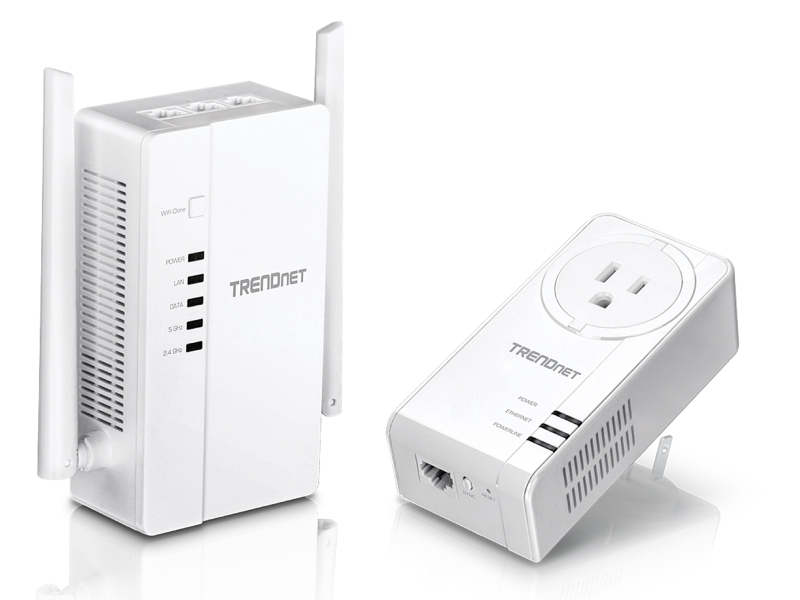

- Powerline kit includes TPL-423E and TPL-430AP

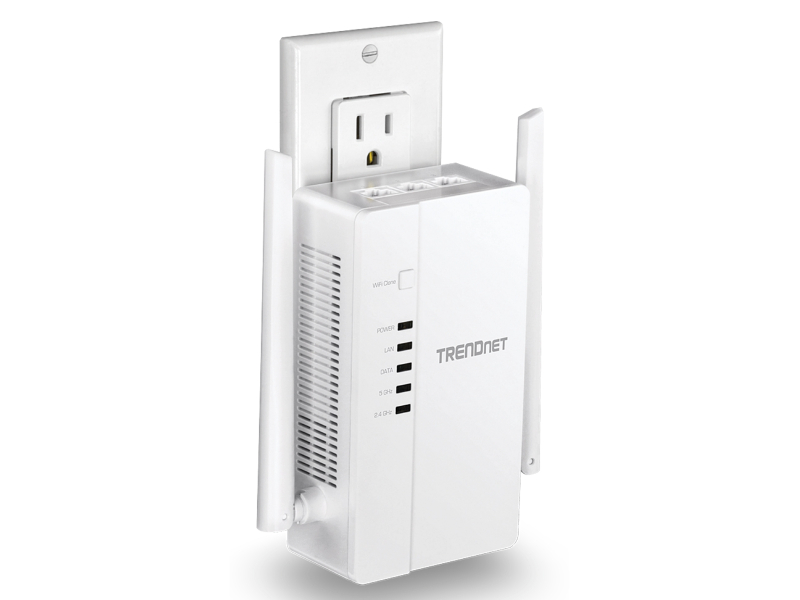

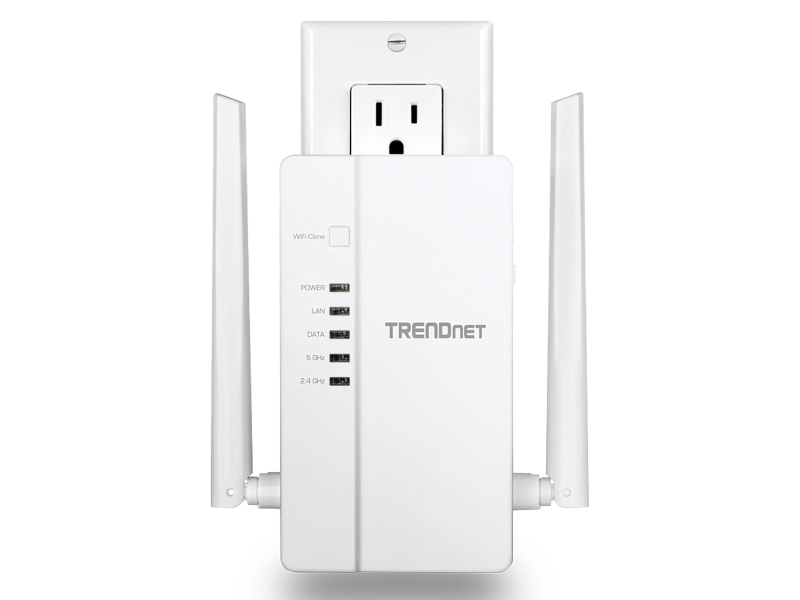

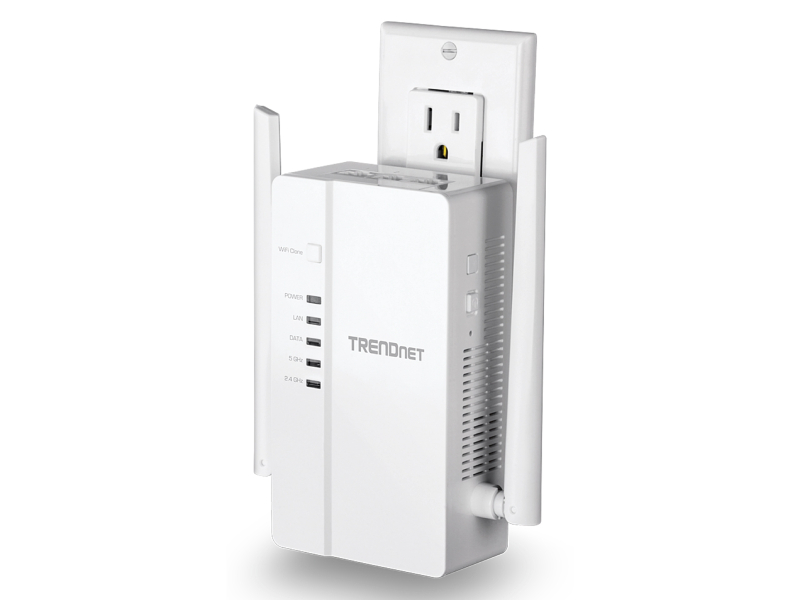

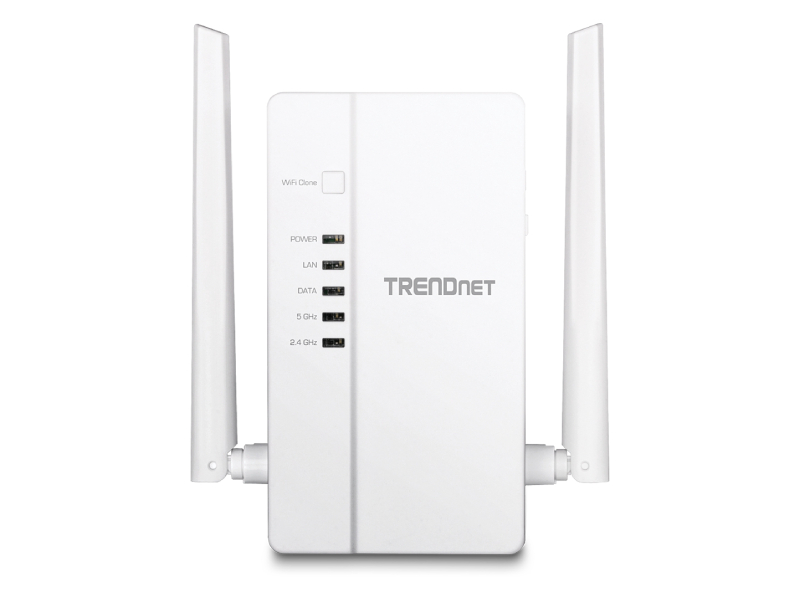

- TPL-430AP features a dual-band wireless AC1200 access point with three gigabit ports
- Enhanced Powerline performance and range from MIMO with Beamforming technology
- Easy installation – TRENDnet adapters auto-connect out of the box
- Pre-encrypted for your convenience
- Powerline range of up to 300m (984 ft.) over existing electrical lines
- WiFi Clone button copies your existing wireless network settings to the TPL-430AP for faster network integration
- NDAA compliant

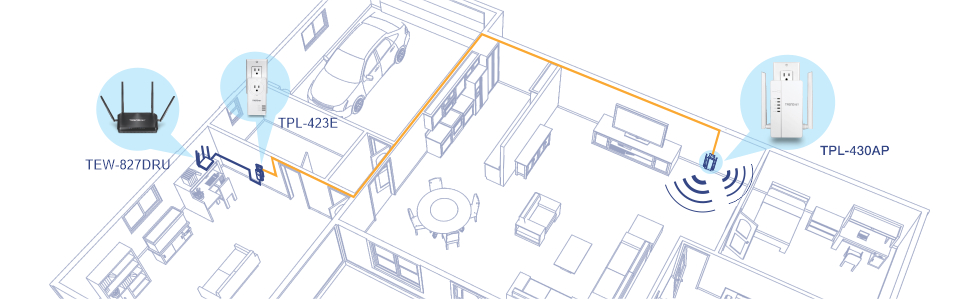

TRENDnet's WiFi Everywhere™ Powerline 1200 AV2 Wireless Kit, model TPL-430APK, uses your existing electrical outlets to create or expand a wireless network. Easily install the included TRENDnet Powerline adapters to create a high-speed powerline network. Connect the TPL-423E Powerline adapter to the router and plug the TPL-430AP WiFi Powerline adapter into a power outlet in another room where WiFi connectivity is needed. The WiFi Clone button conveniently copies your existing wireless network settings to the TPL-430AP WiFi Powerline adapter for faster network integration.

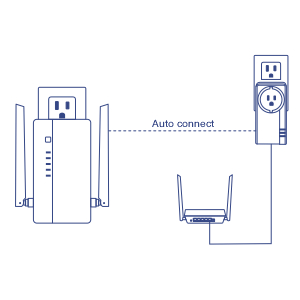

Easy Installation
Simply plug in the TRENDnet Powerline adapter and WiFi Powerline adapter, and they will auto-connect to each other right out of the box.

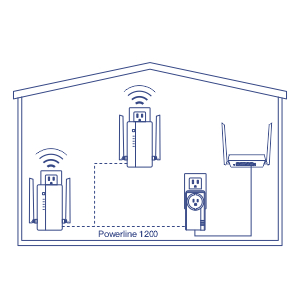

WiFi Everywhere™
By combining wireless and Powerline technologies, you can enjoy wireless connectivity from any power outlet in your household.

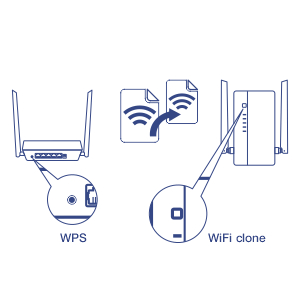

WiFi Clone
Use your router's WPS button and the TPL-430AP's WiFi Clone button to conveniently copy your existing wireless network name and password for quick network integration.
Powerline
Sync Button
Press the Sync button to change existing Powerline encryption keys
Powerline 1200
Powerline 1200 networking over existing electrical lines using all three electrical wires: the live, neutral, and ground wires to achieve faster throughput speeds

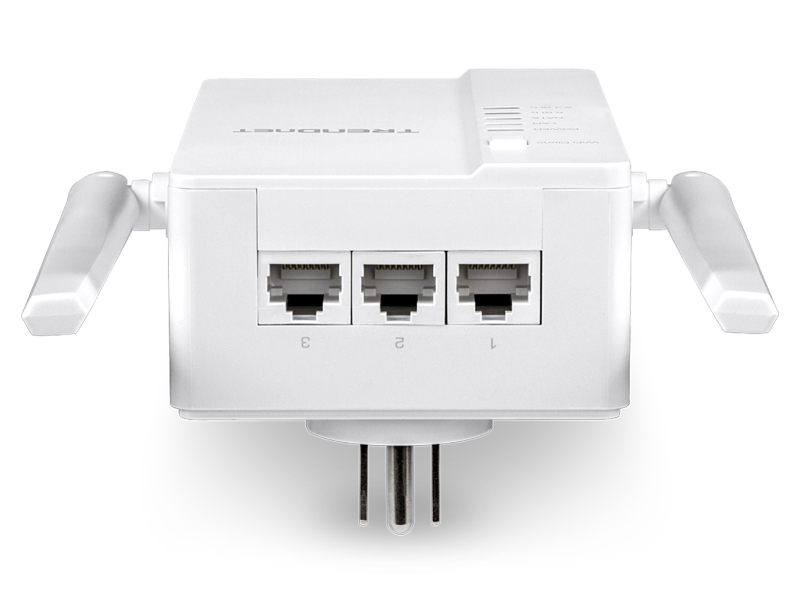

Gigabit Ports
Convenient gigabit ports to hardwire computers, smart TVs, or other network enabled devices
Compatibility
Powerline adapters are backward compatible with Powerline 600, 500, and 200 adapters
MIMO with Beamforming Technology
Enhanced performance and range
Multiple Adapters
Use up to 8 Powerline adapters on a single Powerline network
Easy Installation
TRENDnet Powerline adapters and WiFi Powerline adapters auto-connect out of the box
Wireless
Concurrent Dual-Band
AC1200: concurrent 867Mbps WiFi AC + 300Mbps WiFi N bands
Wireless Coverage
Expand your wireless coverage with MIMO antenna technology
Pre-Encrypted
For your convenience, the wireless on the WiFi Powerline adapter is pre-encrypted with a unique password
WiFi Clone
Use your router's WPS button and the TPL-430AP's WiFi Clone button to conveniently copy your existing wireless network name and password for quick network integration
| TPL-430AP | |
|---|---|
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 300Mbps) IEEE 802.11ac (up to 867Mbps) IEEE 1901 |

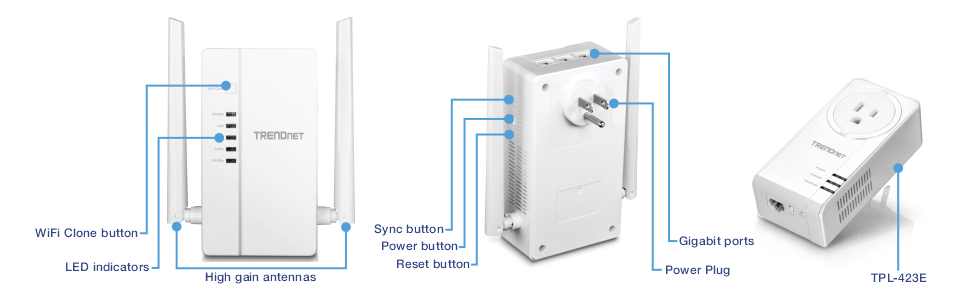

| Device Interfaces | 3 x Gigabit LAN ports WiFi Clone button Reset button Sync button Power switch LED indicators Power plug Type B (NEMA 5–15) |
| Frequency Band | 2–67MHz |
| Modulation/Protocol | OFDM Symbol Modulation on link synchronization, 4096/1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier CSMA/CA |
| Networking Distance | Powerline: Up to 300m (984 ft.) linear distance over electrical power lines*** |
| Encryption | Wireless: WPA2-PSK Powerline: 128-bit AES (Advanced Encryption Standard) |
| Powerline Nodes | Up to 8 (max.) |
| Overlapping Powerline Networks | Up to 4 (per electrical system) |
| Special Features | Auto-connects to other TRENDnet Powerline adapters Additional Ethernet ports for wired connectivity Automatically clones the SSID and password of your WiFi network IPv6 support QoS Management IGMP / MLDv2 Streams |
| Antenna Gain | 2.4GHz: 2 x 3.31dBi 5GHz: 2 x 4.51dBi |
| Wireless Output Power/Receiving Sensitivity | 802.11a: 16dBm (typical) / -65dBm (typical) @ 54Mbps 802.11b: 20dBm (typical) / -88dBm (typical) @ 11Mbps 802.11g: 15dBm (typical) / -76dBm (typical) @ 54Mbps 802.11n (2.4GHz): 13dBm (typical) / -73dBm (typical) @ 300Mbps 802.11n (5GHz): 16dBm (typical) / -70dBm (typical) @ 300Mbps 802.11ac: 15dBm (typical) / -60dBm (typical) @ 867Mbps |
| Power | Input: 100 – 240V AC, 50/60Hz, 0.2A Max. consumption 12W |
| Operating Temperature | 0° – 40° C (32° – 104° F) |
| Operating Humidity | Max. 90% non-condensing |
| Certifications | FCC IC |
| Dimensions | 255 x 130 x 75mm (10.04 x 5.11 x 2.95in.) |
| Weight | 332g (11.7 oz.) |
| Warranty | 3 year |
| TPL-423E | |
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 1901 |
| Device Interfaces | 1 x Gigabit LAN ports Sync button Reset button LED indicators Power plug Type B (NEMA 5–15) (10A max. @ 120V AC) |
| Frequency Band | 2 – 67.5MHz |
| Data PHY Rate | Up to 1200Mbps |
| Networking Distance | Powerline: Up to 300m (984 ft.) linear distance over electrical power lines*** |
| Encryption | Powerline: 128-bit AES (Advanced Encryption Standard) |
| Powerline Nodes | Up to 8 (max.) |
| Overlapping Powerline Networks | Up to 4 (per electrical system) |

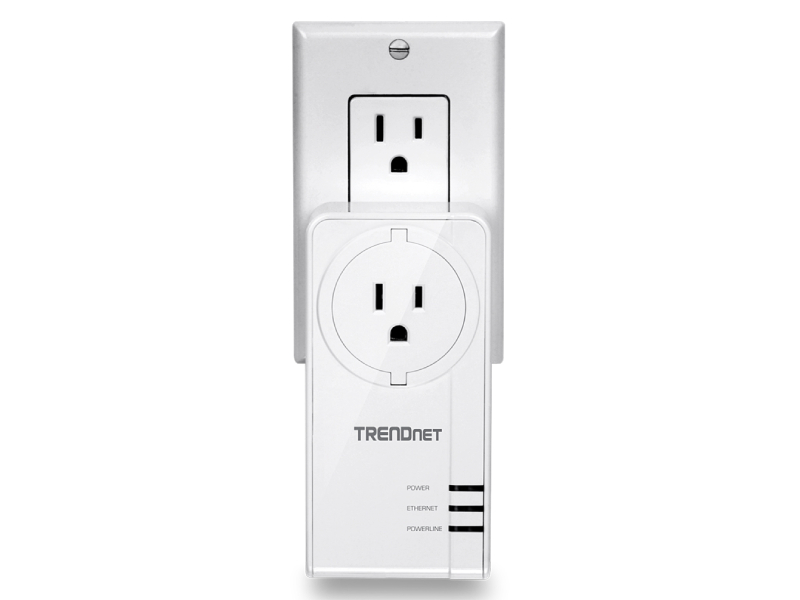

| Special Features | Built-in power socket Auto-connects to other TRENDnet Powerline adapters IPv6 support IGMP / MLDv2 Streams |
| Power | Input: 100 – 240V AC, 50/60Hz, 0.2A Max. consumption: Active mode: 4W; Standby mode: 0.5W |
| Operating Temperature | 0° – 50° C (32° – 122° F) |
| Operating Humidity | Max. 90% non-condensing |
| Certifications | FCC IC |
| Dimensions | 120 x 60 x 65mm (4.73 x 2.4 x 2.6 in.) |
| Weight | 176g (6.2 oz.) |
| Warranty | 3 year |
| PACKAGE CONTENTS | |

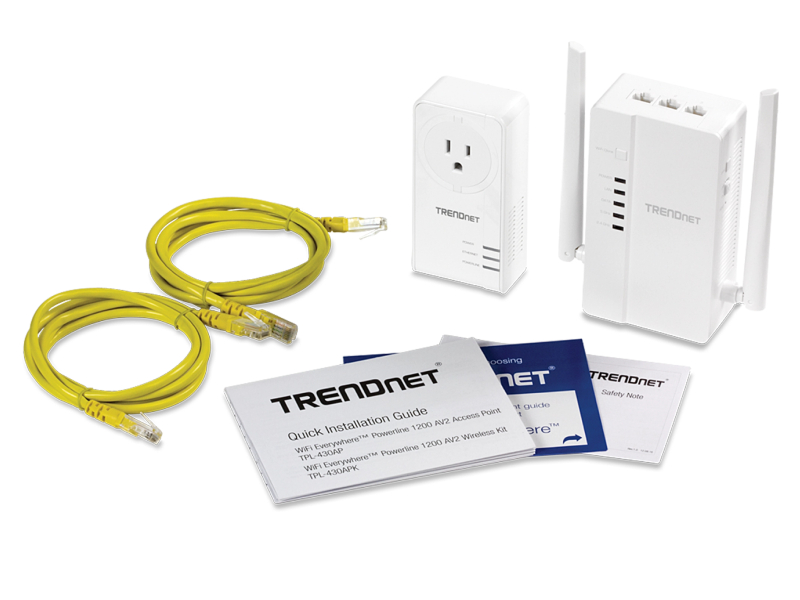

| PACKAGE CONTENTS | TPL-430AP TPL-423E Quick Installation Guide 2 x Network cable (1.5m / 5 ft.) |
