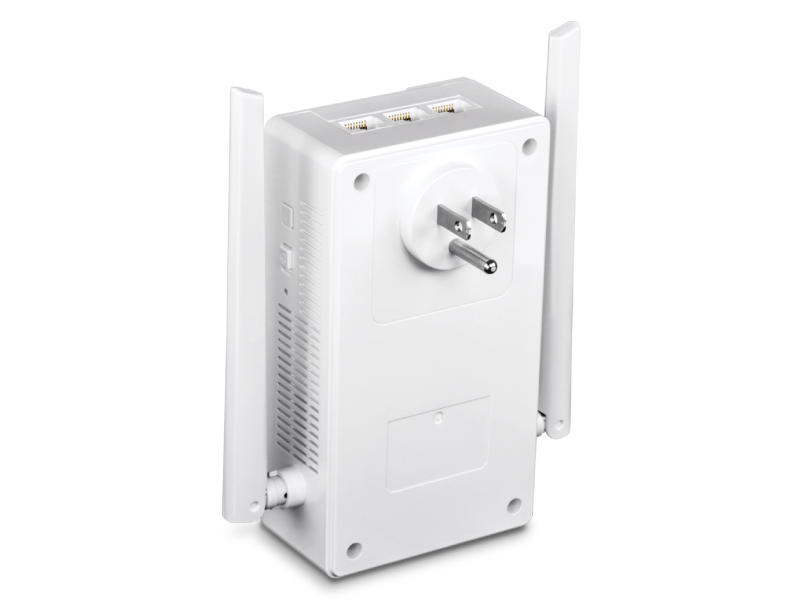

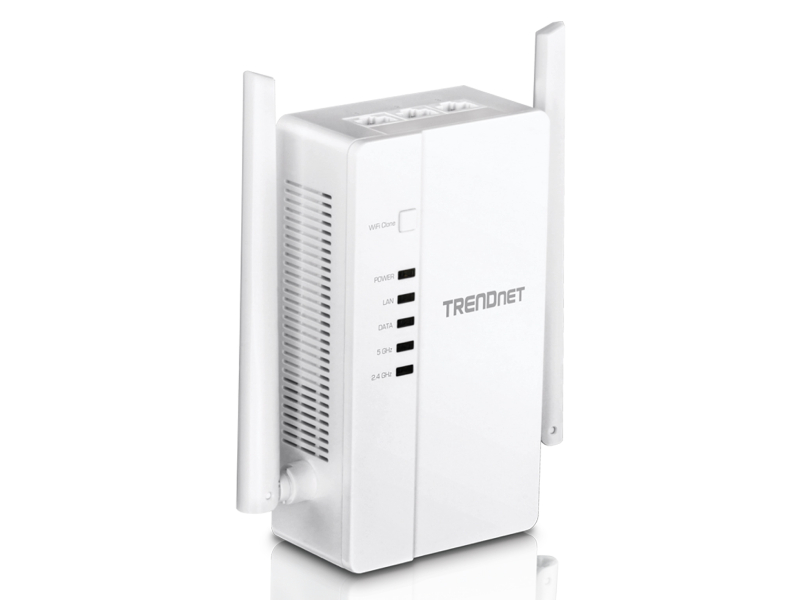

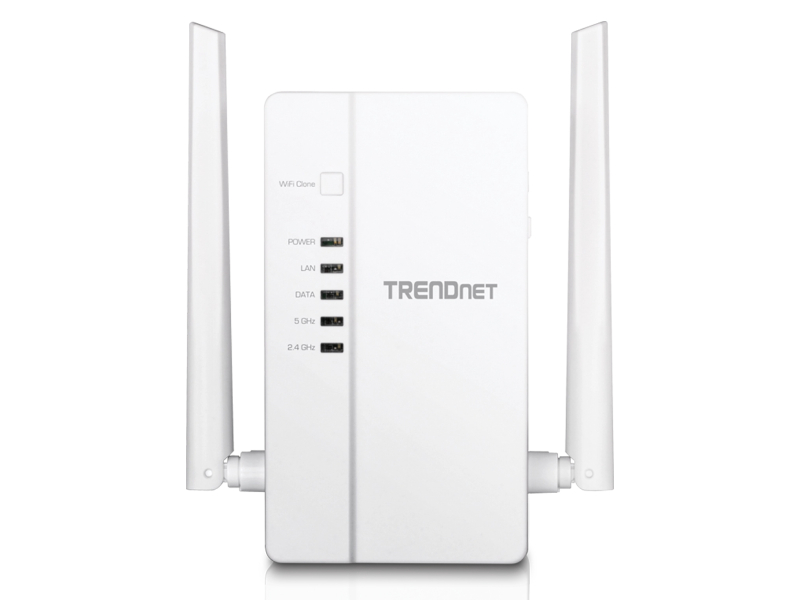

Trendnet WiFi Everywhere Powerline 1200 AV2 Access Point - TPL-430AP
TPL-430AP (Version V1)
- Powerline 1200 networking over existing electrical lines
- Built-in dual-band wireless AC1200 access point
- Enhanced Powerline performance and range from MIMO with Beamforming technology
- Easy installation – TRENDnet adapters auto-connect out of the box
- Pre-encrypted for your convenience
- Three gigabit ports for high performance wired networking
- Powerline range of up to 300 m (984 ft.) over existing electrical lines
- Two Powerline adapters are required to start a network
- WiFi Clone button copies your existing wireless network settings to the TPL-430AP for faster network integration
- NDAA compliant

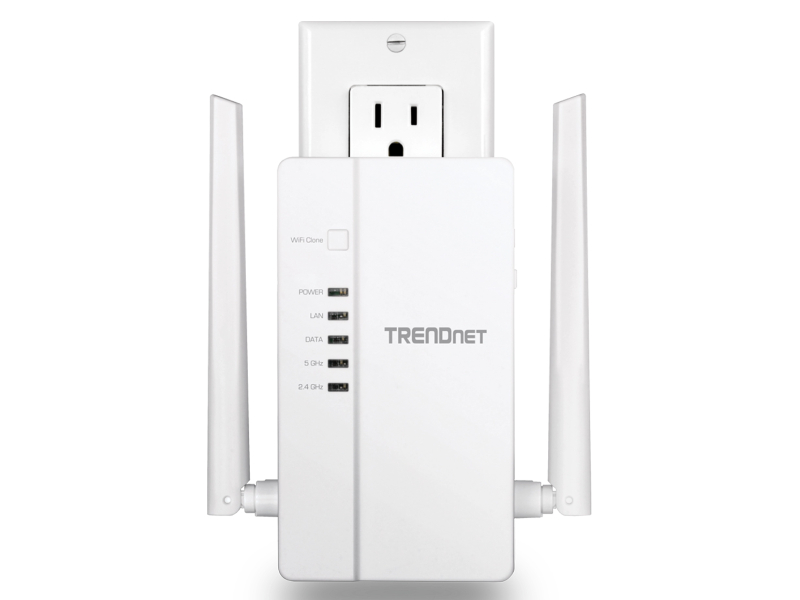

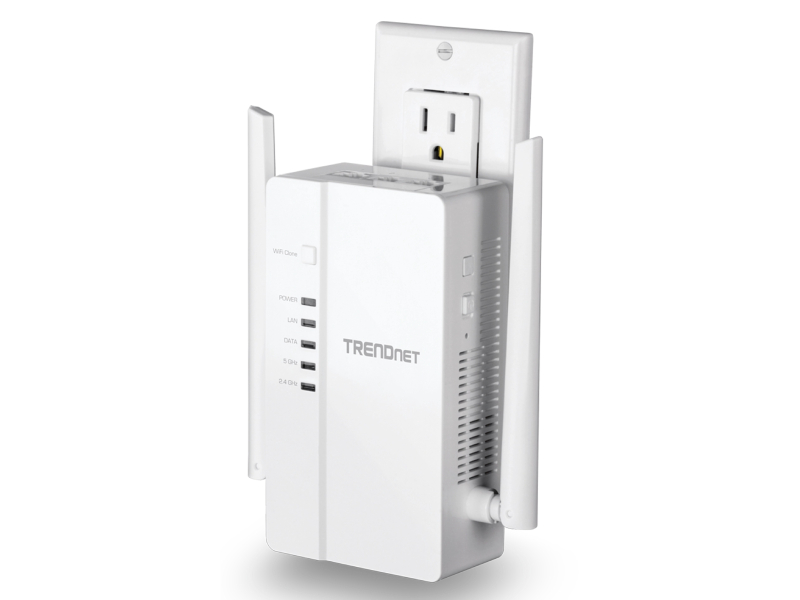

TRENDnet's WiFi Everywhere™ Powerline 1200 AV2 Access Point, model TPL-430AP, uses an electrical outlet to create or expand a wireless network. Two Powerline adapters are needed to start a network. Connect one Powerline adapter to the router, and plug the TPL-430AP into a power outlet in another room where WiFi connectivity is needed. The WiFi Clone feature conveniently copies your existing wireless network settings to the TPL-430AP for faster network integration.
Gigabit Ports
Three gigabit ports provide high-speed network connections to devices, and a 6 Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
WiFi Everywhere™
Connect all of your 2.4 GHz & 5 GHz devices to a dual band WiFi AC1200 network.
WiFi Clone
Use your router's WPS button and the TPL-430AP's WiFi Clone button to conveniently copy your existing wireless network name and password for quick network integration.
Powerline
Sync Button
Press the Sync button to change existing Powerline encryption keys
Powerline 1200
Extreme Powerline networking over existing electrical lines, use all three electrical wires: the live, neutral, and ground wires to achieve faster throughput speeds
Gigabit Ports

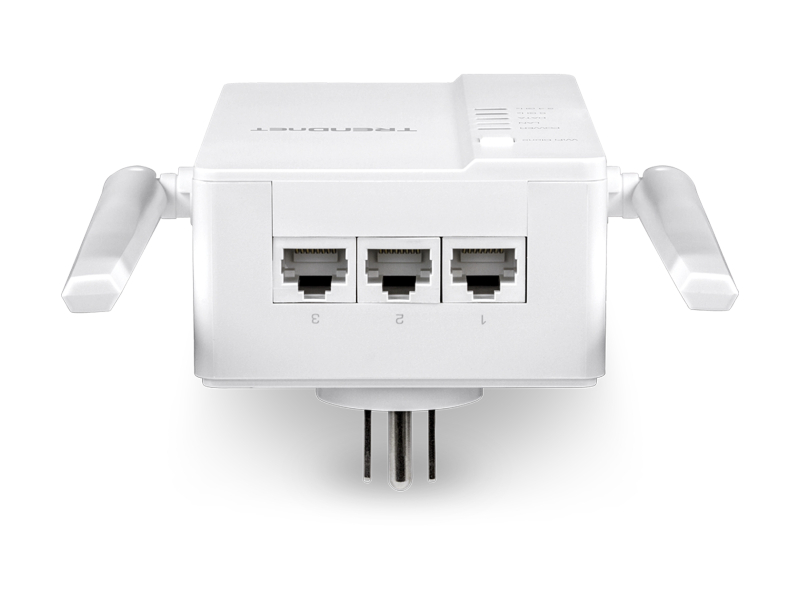

Three convenient gigabit ports to hardwire computers, smart TVs, or other network enabled devices
Compatibility
Backward compatible with Powerline 600, 500, and 200 adapters
MIMO with Beamforming Technology
Enhanced performance and range
Multiple Adapters
Use up to 8 adapters on a single Powerline network
Easy Installation
TRENDnet adapters auto-connect out of the box
Pre-Encrypted
The adapter is pre-encrypted for your convenience
Wireless
Concurrent Dual Band
AC1200: concurrent 867 Mbps WiFi AC + 300 Mbps WiFi N bands
Wireless Coverage
Expand your wireless coverage with MIMO antenna technology
Pre-Encrypted
For your convenience the wireless is pre-encrypted with a unique password
WiFi Clone
Use your router's WPS button and the TPL-430AP's WiFi Clone button to conveniently copy your existing wireless network name and password for quick network integration.
| Specifications | |
|---|---|
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 300Mbps) IEEE 802.11ac (up to 866Mbps) IEEE 1901 |

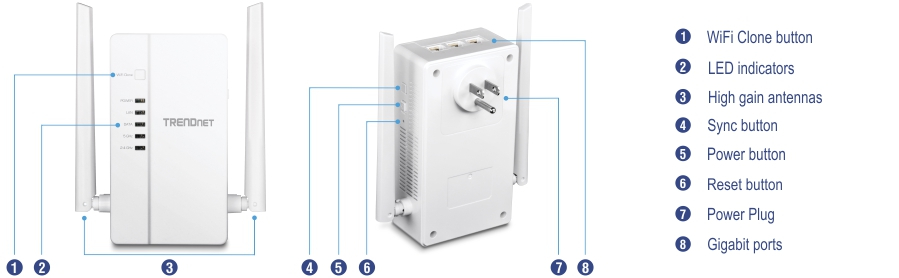

| Device Interface | 3 x Gigabit LAN ports WiFi Clone button Reset button Sync button Power switch LED indicators |
| Power plug | A: North America Type B (NEMA 5–15) EU: European Type E/F Hybrid (CEE 7/7) UK : United Kingdom Type G (BS 1363) |
| Frequency Band | 2 - 67MHz |
| Modulation/Protocol | OFDM Symbol Modulation on link synchronization, 4096/1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier CSMA/CA Powerline: Up to 300m (980ft.) linear distance over electrical power lines*** |
| Encryption | Wireless: WPA2-PSK Powerline: 128-bit AES (Advanced Encryption Standard) |
| Powerline Nodes | Up to 8 (max.) |
| Overlapping Powerline Networks | Up to 4 (per electrical system) |
| Special Features | Auto-connects to other TRENDnet Powerline adapters Additional Ethernet ports for wired connectivity Automatically clones the SSID and password of your WiFi network IPv6 support QoS Management IGMP / MLDv2 Streams |
| Antenna Gain | 2.4GHz: 2 x 3.31dBi 5GHz: 2 x 4.51dBi |
| Wireless Output Power / Receiving Sensitivity | 802.11a: 16 dBm (typical) / -65 dBm (typical) @ 54Mbps 802.11b: 20dBm (typical) / -88dBm (typical) @ 11Mbps 802.11g: 15dBm (typical) / -76dBm (typical) @ 54Mbps 802.11n (2.4 GHz): 13dBm (typical) / -73dBm (typical) @ 300Mbps 802.11n (5 GHz): 16dBm (typical) / -70dBm (typical) @ 300Mbps 802.11ac (5GHz): 15dBm (typical) / -60dBm (typical) @ 866Mbps |
| Power | Input: 100 - 240V AC, 50 - 60Hz, 0.2A Active mode consumption: 12W (max.) |
| Operating Temperature | 0 - 40°C (32 – 104°F) |
| Operating Humidity | Max. 90% non-condensing |
| Certifications | CE FCC IC UL |
| Dimensions | 255 x 130 x 75mm (10.04 x 5.11 x 2.95in.) |
| Weight | A: 332g (11.7oz.) EU: 342g (12oz.) UK: 332g (11.7oz.) |
| Warranty | 3 year |
| PACKAGE CONTENTS | TPL-430AP Quick Installation Guide Network cable (1.5m / 5 ft.) |
