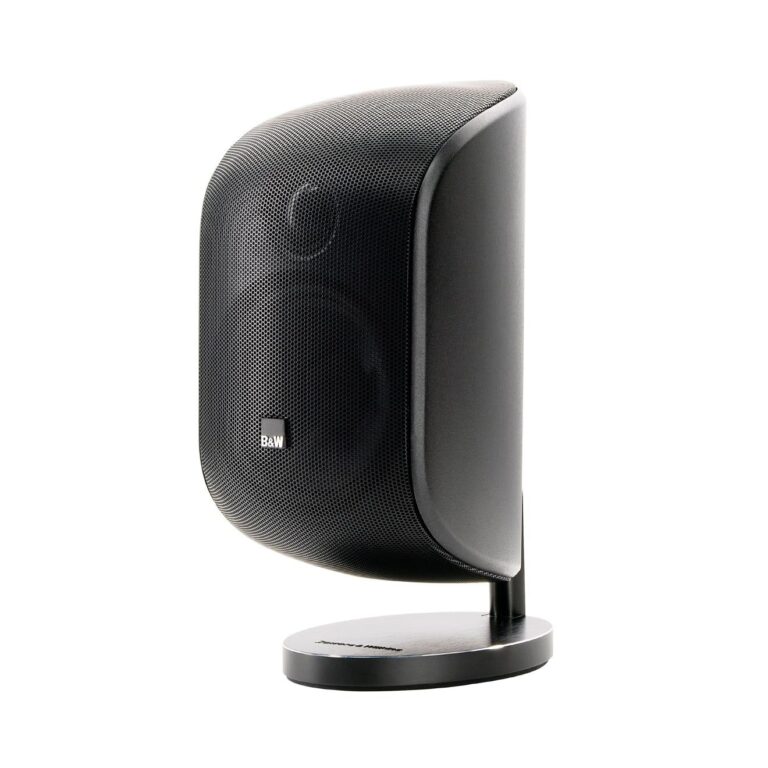

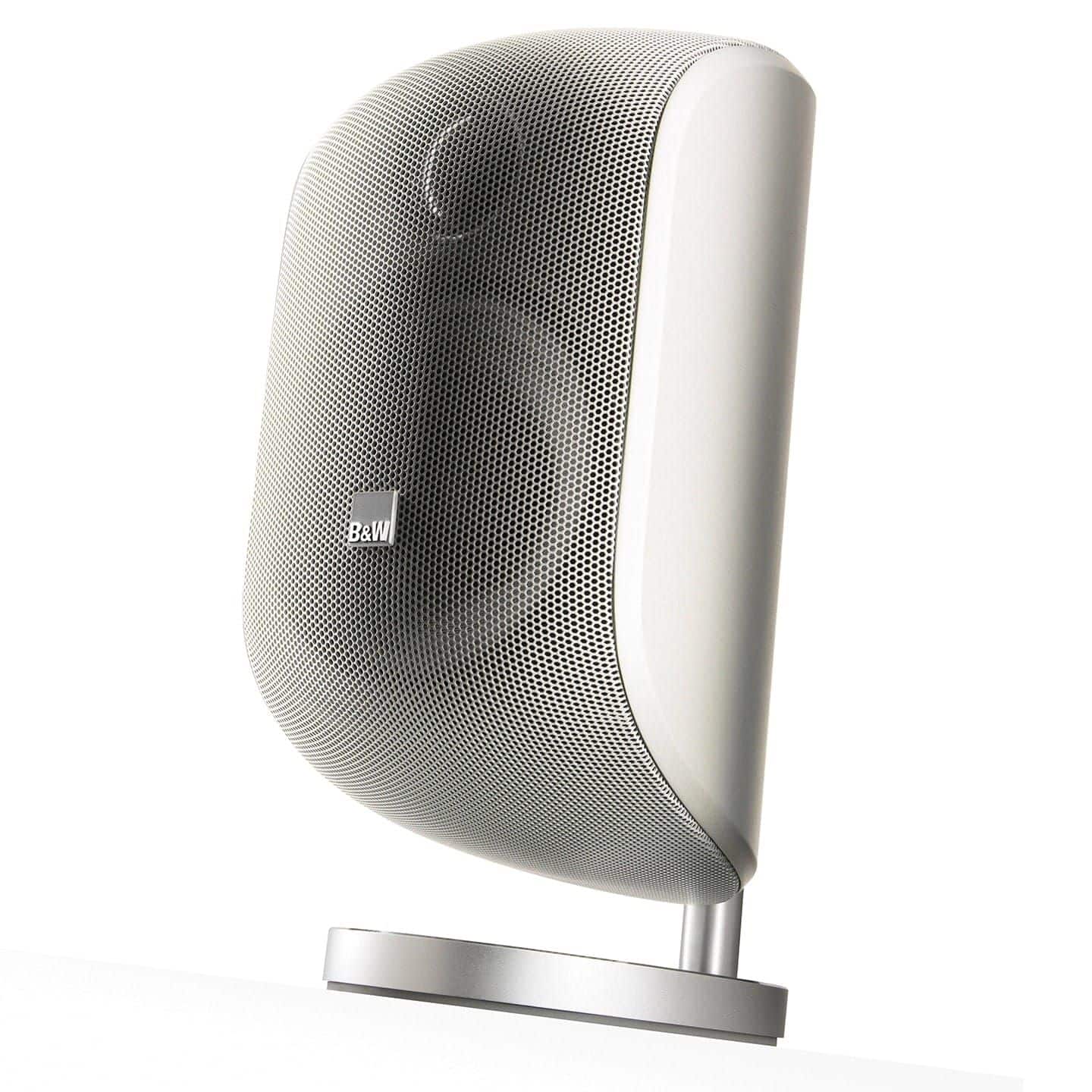

M-1
Impressive sound, impressive size
Technical specifications
Model
M-1
Drive units
1x ø25mm (1in) metal dome high-frequency
1x ø100mm (4in) woven glass fiber cone bass/midrange
Sensitivity
85dB spl (2.83V, 1m)
Nominal impedance
8Ω (minimum 4Ω)
Crossover frequency
4kHz
Recommended amplifier power
20W – 100W into 8Ω on unclipped program
Dimensions
Height: 248mm (9.8in)
Width: 114mm (4.5in)
Depth: 162mm (6.4in)
Net weight
2.3kg (5lb) including table stand
Cabinet finishes
Matte Black
Matte White
Grille finishes
Matte Black or Matte White perforated steel to match cabinet
