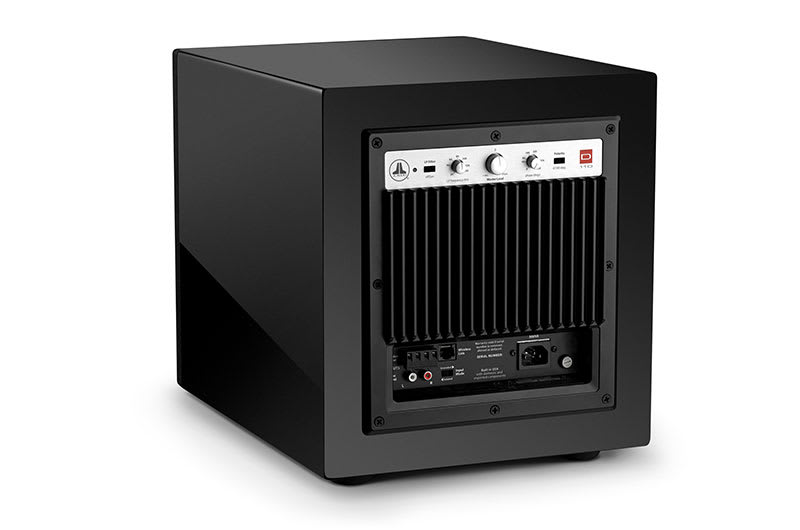

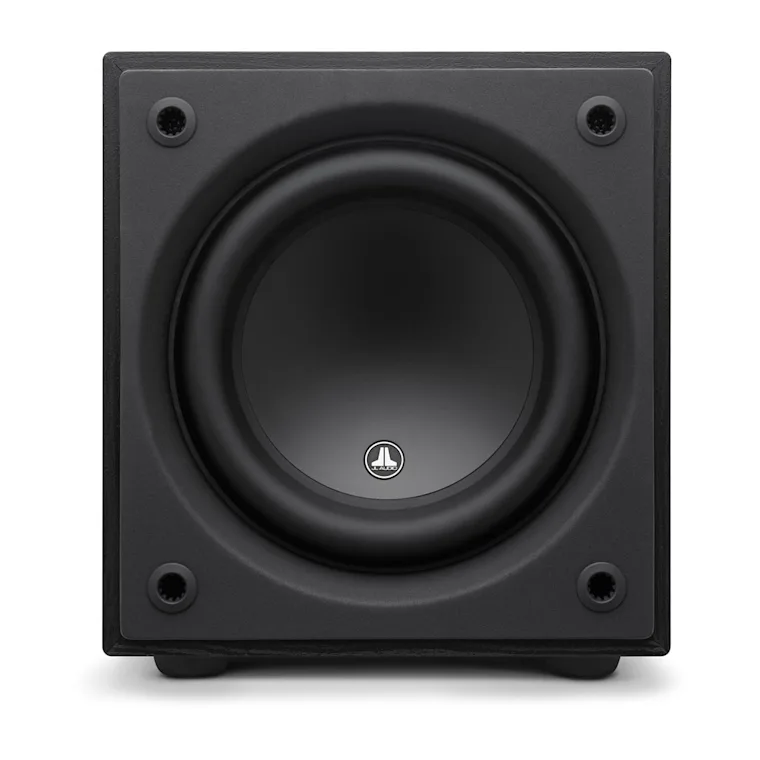

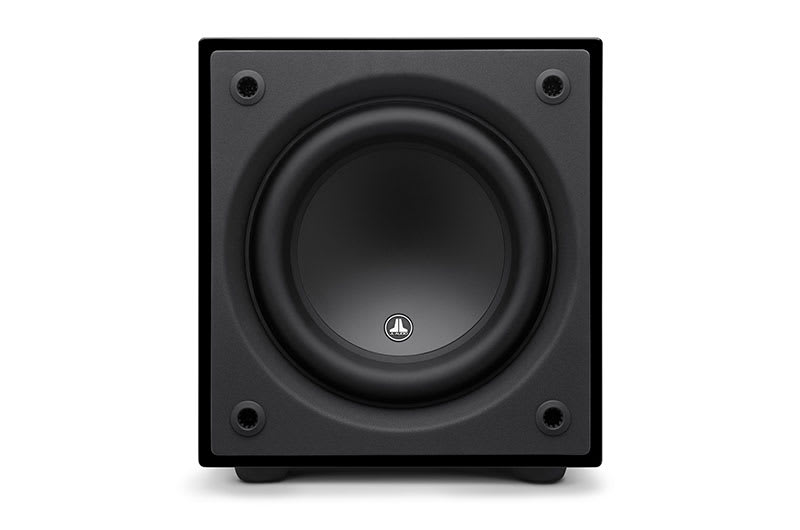

JL Audio 10" Dominion Powered Subwoofer in Black Ash - D110-ASH
TREMENDOUS SOUND IN A TINY PACKAGE
These powered subwoofers combine a state-of-the-art subwoofer and advanced Class-D amplifier to deliver unmatched performance and value for a wide variety of compact applications.
8- OR 10-INCH SUBWOOFER SIZES
STUDIO-GRADE SIGNAL PROCESSING
500 TO 750 WATTS OF POWER
COMPACT SEALED ENCLOSURE

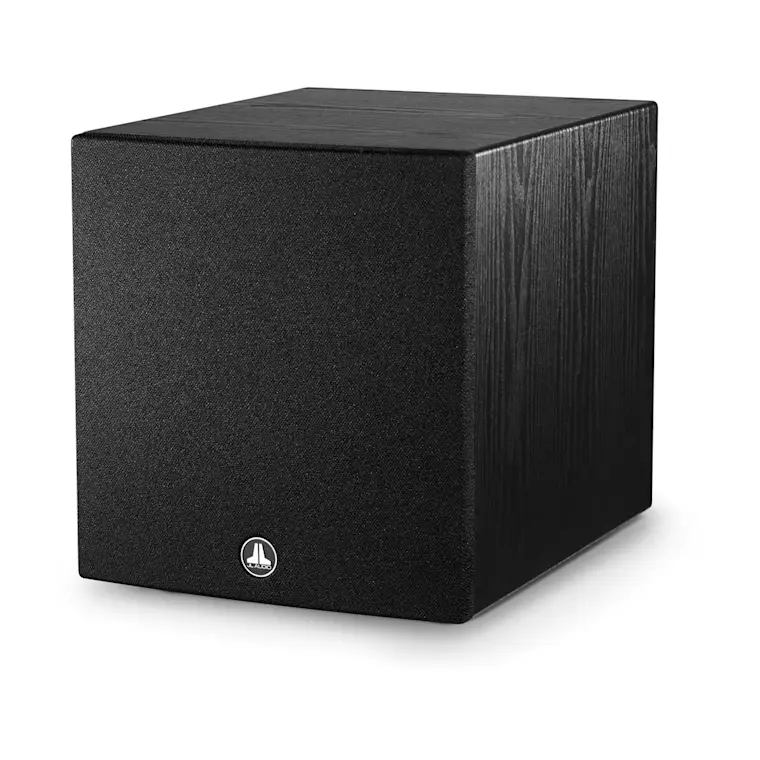

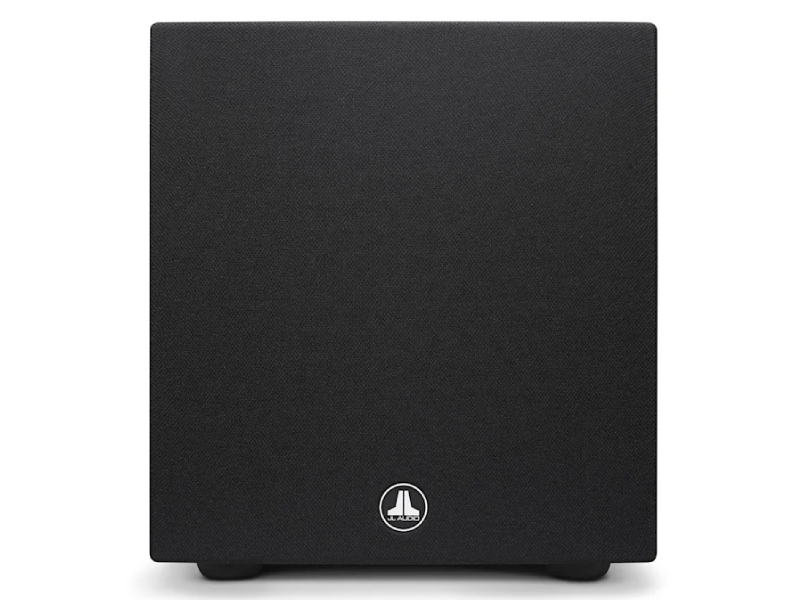

REMOVABLE FABRIC GRILLE
AVAILABLE IN BLACK ASH OR GLOSS BLACK FINISHES
CLASS-D DESIGN
The amplifier utilizes an advanced Class-D design to extract the most from the long-excursion driver platform. This design features a tightly regulated switching power supply, allowing the amplifier to generate a remarkable amount of unclipped output voltage.
ADVANCED SIGNAL PROCESSING

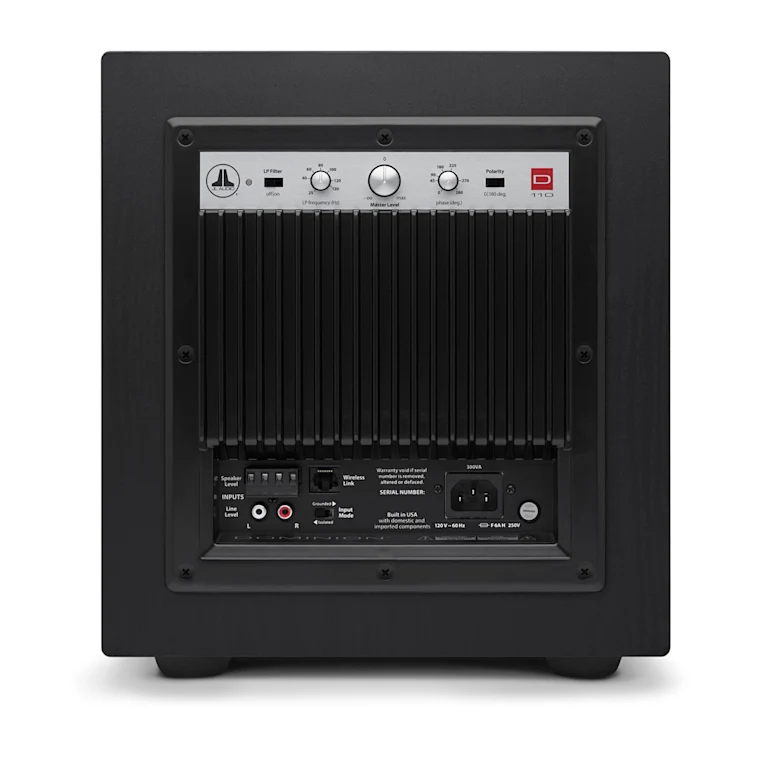

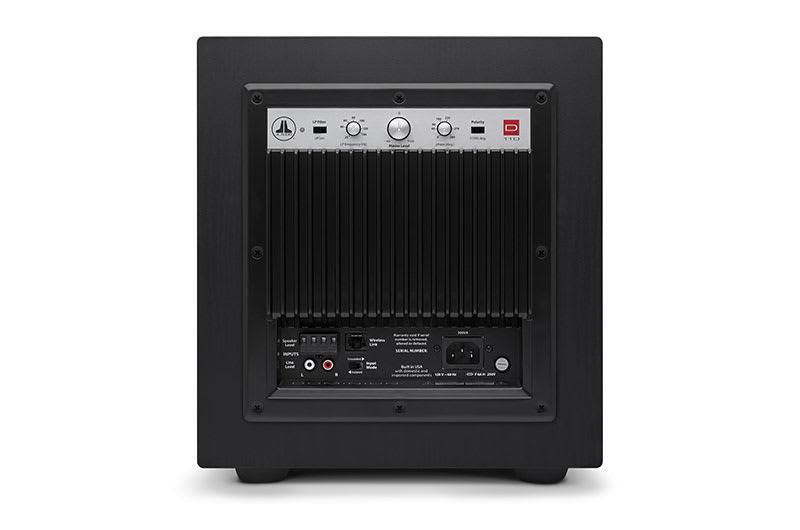

Low-pass signals are precisely filtered, thanks to the onboard crossover’s 24-decibel/octave Linkwitz-Riley alignment. Phase and polarity controls are on board for the optimal acoustic transition between the subwoofer(s) and main speakers. Flexible input options can accept either line-level or speaker-level signals.
CAREFULLY CRAFTED
To contain the immense pressures created by the Dominion driver, each beautiful cabinet is carefully engineered and constructed by using solid, CNC-cut MDF material with extensive internal bracing and advanced assembly techniques.

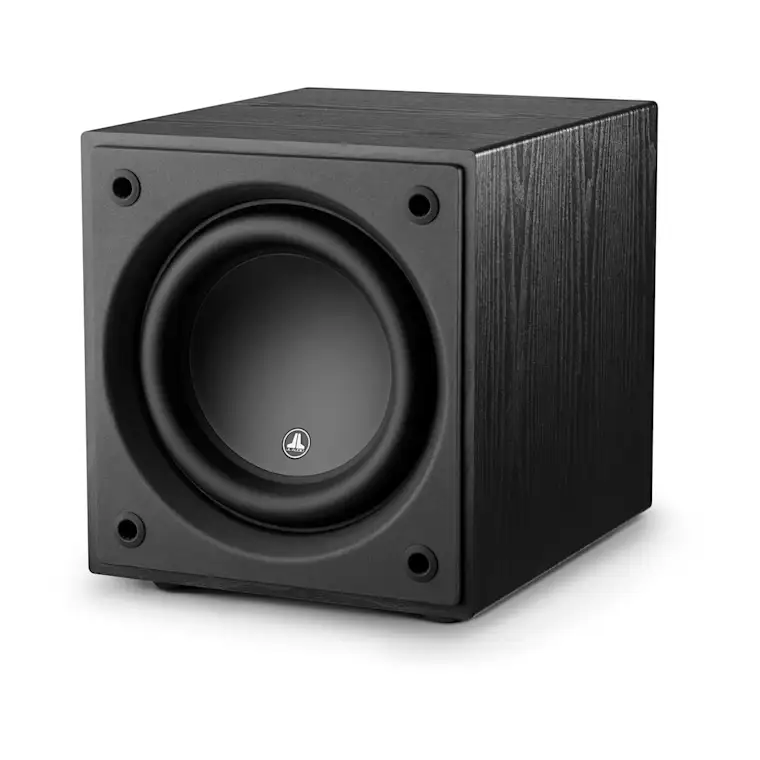

PRECISION-BUILT DRIVER
These compact drivers feature massive cast-alloy frames and several unique JL Audio technologies to deliver premium audio quality.
DIRECT CONNECT TO JLINK™ SYSTEM

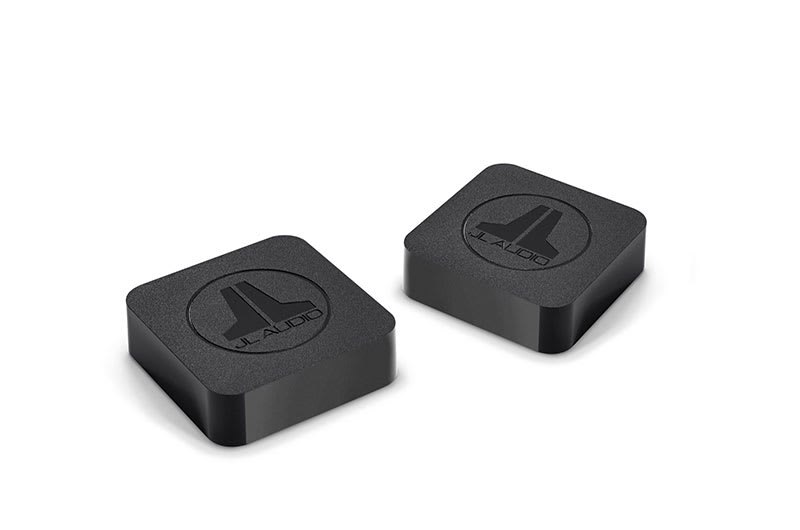

This subwoofer is compatible with the wireless JLink connection system and has a direct connection port for the JLink receiver.
DOMINION TECHNOLOGIES
DMA-OPTIMIZED WOOFER
Proprietary motor, suspension and cone modeling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output.
VENTED REINFORCEMENT COLLAR (VRC™)
The VRC collar design from JL Audio improves the rigidity and stability of the cone/spider/voice coil junction and directs airflow over the voice coil windings for improved thermal performance.
FCAM™ TECHNOLOGY
This “floating cone attach method” of bonding the surround/cone assembly to the voice coil former/spider structure ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.
ENGINEERED LEAD-WIRE SYSTEM
Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.
| General | |
|---|---|
| Sizes | 8"/10" |
| Physical dimensions (Height) | 8": 11.37" (289 mm) 10": 13.4" (340 mm) |
| Physical dimensions (Width) | 8": 12" (305 mm) 10": 10" (254 mm) |
| Physical dimensions (Depth) | 8": 13.23" (336 mm) 10": 15.86" (403 mm) |
| Weight | 8": 26.4 lbs (12 kg) 10": 38.2 lbs (17.3 kg) |
| Amplifier Power (RMS) | 8": 500 W short-term 10": 750 W short-term |
| Frequency response (Anechoic) | 8": 31-112 Hz (±1.5 dB) 10": 27-111 Hz (±1.5 dB) |
| Frequency response (Anechoic, -3dB) | 8": 29 Hz/119 Hz 10": 25 Hz/118 Hz |
| Frequency response (Anechoic, -10dB) | 8": 21 Hz/143 Hz 10": 21 Hz/143 Hz |
| Enclosure type | Sealed |
| Enclosure finish | Black ash or black gloss |
| Grille(s) included | Yes |
| Power modes | Automatic (signal-sensing) |
| Warranty | 3 years |
| Signal Processing | |
| Unbalanced inputs | Stereo or mono (two RCA jacks) |
| Speaker/High-level inputs | Stereo or mono (removeable plug) |
| Input grounding | Isolated or grounded |
| Level control | Variable, from full mute to +15 dB over reference gain |
| Filter mode(s) | Low-pass |
| Filter slope(s) | 24 dB/octave |
| Filter frequency range | 25 Hz-130 Hz |
| Filter defeat function | Yes |
| Polarity | 0 or 180º |
| Phase | Variable, 0-280º, referenced to 80 Hz |
| Parameters | |
| Effective piston area (SD) | 8": 32.18 in² (0.0208 m²) 10": 48.71 in² (0.0314 m²) |
| Effective displacement | 8": 80 cu in (1.3 L) 10": 127 cu in (2.08 L) |
| In the box | |
| In the Box | Dominion powered subwoofer Power cord Grille (attached) |
