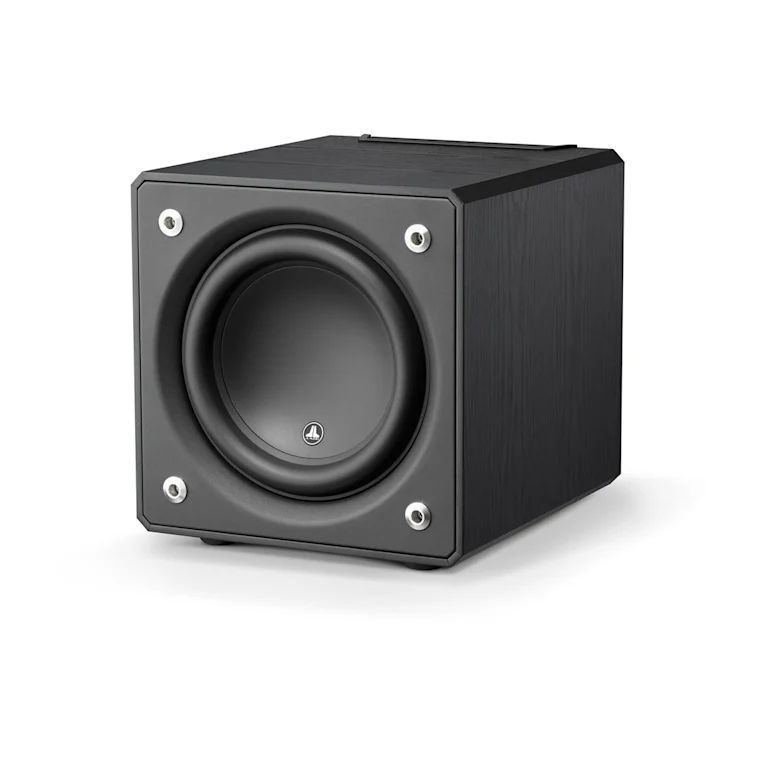

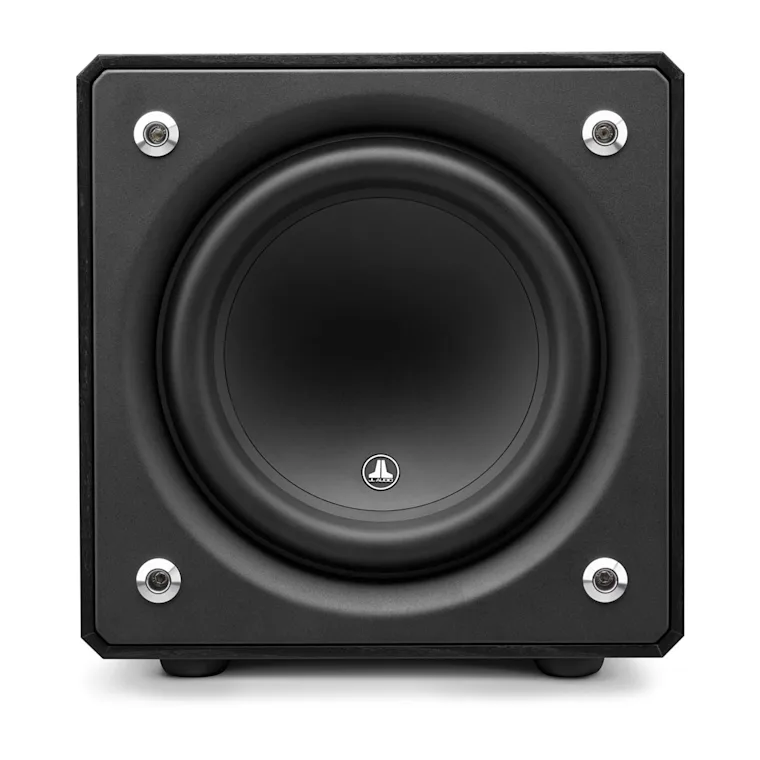

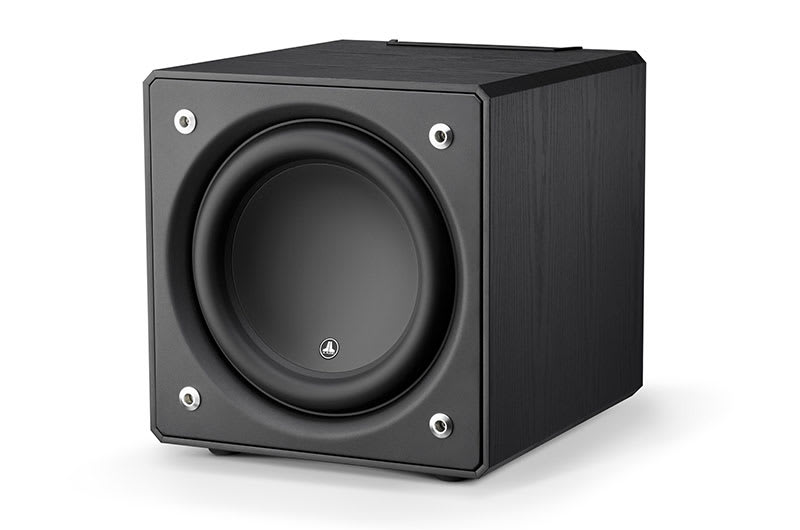

JL Audio 10" E-Sub Powered Subwoofer in Black Ash - E110-ASH
GAME-CHANGING BASS
E-Sub powered subwoofers deliver exceptional sound quality, power and value in a wide range of applications.
10- OR 12-INCH SUBWOOFER SIZES
STUDIO-GRADE SIGNAL PROCESSING
UP TO 1500 WATTS OF POWER
COMPACT SEALED ENCLOSURE

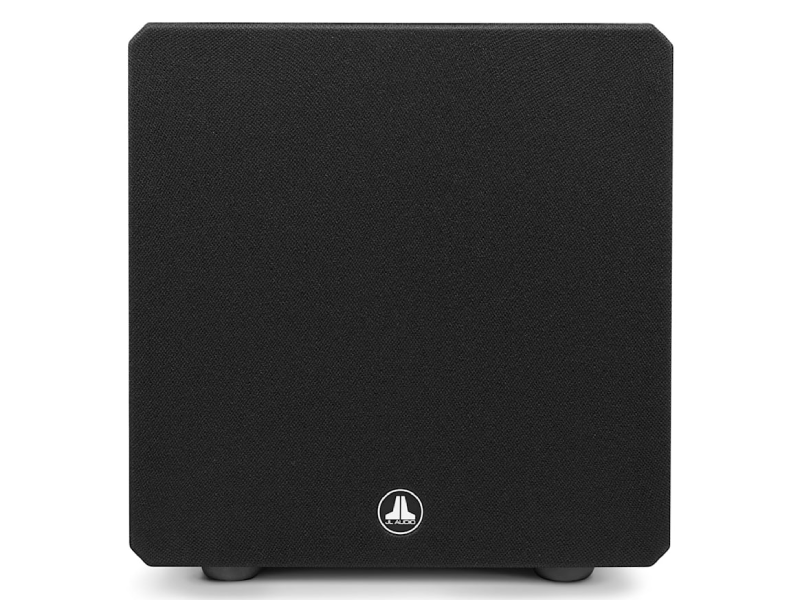

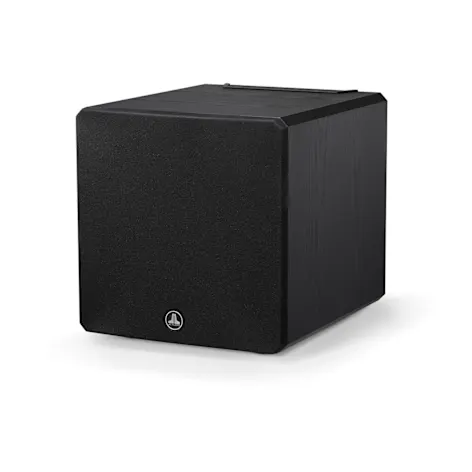

REMOVABLE FABRIC GRILLE

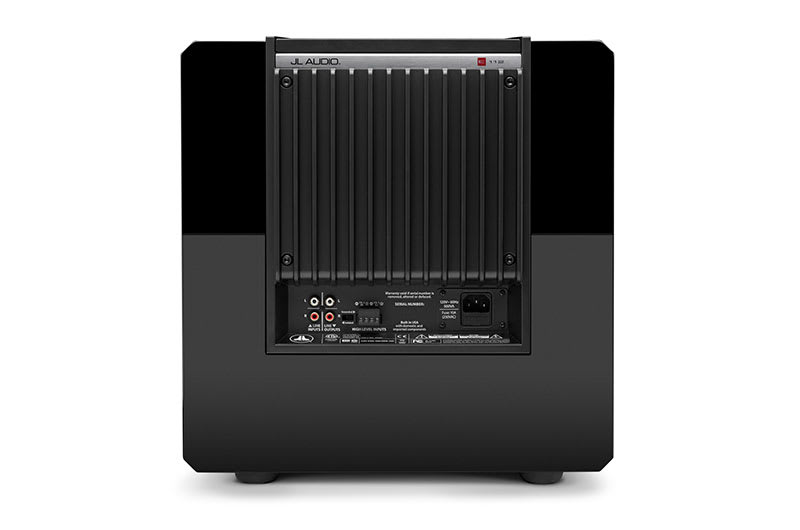

AVAILABLE IN BLACK ASH OR GLOSS BLACK FINISHES
EXTRA-LONG EXCURSION
The extreme mounting depth of the E-Sub driver permits wide gaps to exist between the three suspension elements. This imparts exceptional mechanical stability over the driver’s full excursion range, further improving linearity, reducing distortion and enhancing long-term reliability.

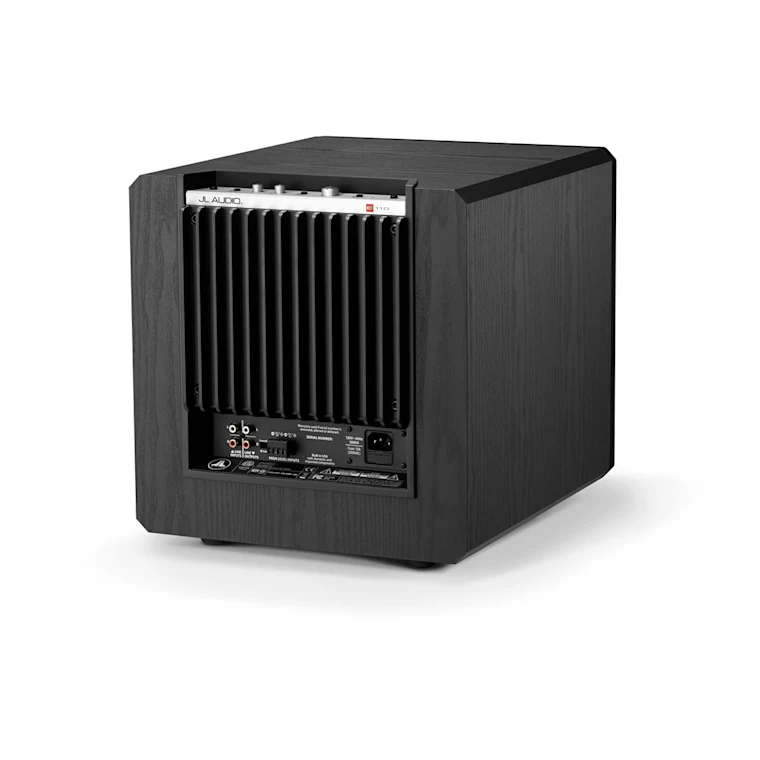

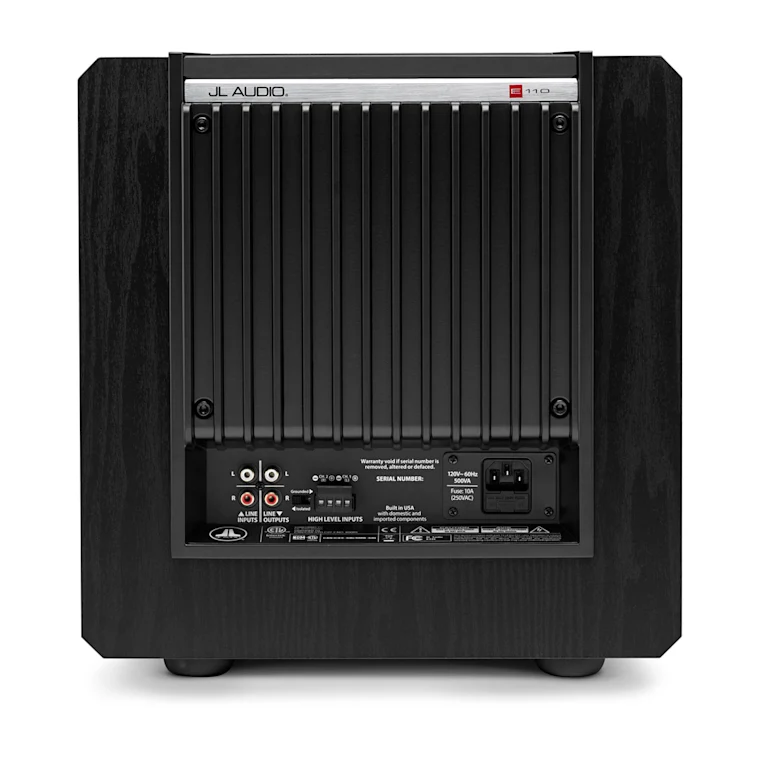

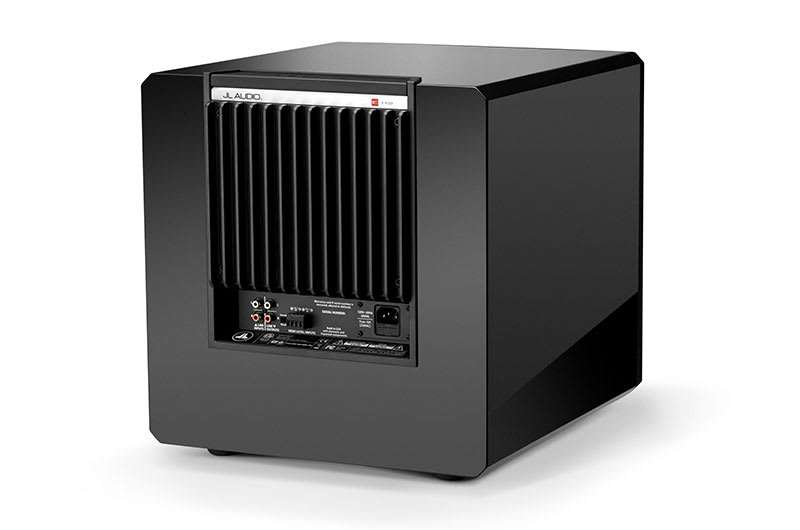

SWITCHING AMPLIFIER
To power the drivers, we engineered a completely new amplifier with a regulated switching power supply. Its chassis is more compact, lightweight and efficient while still delivering ample clean power.

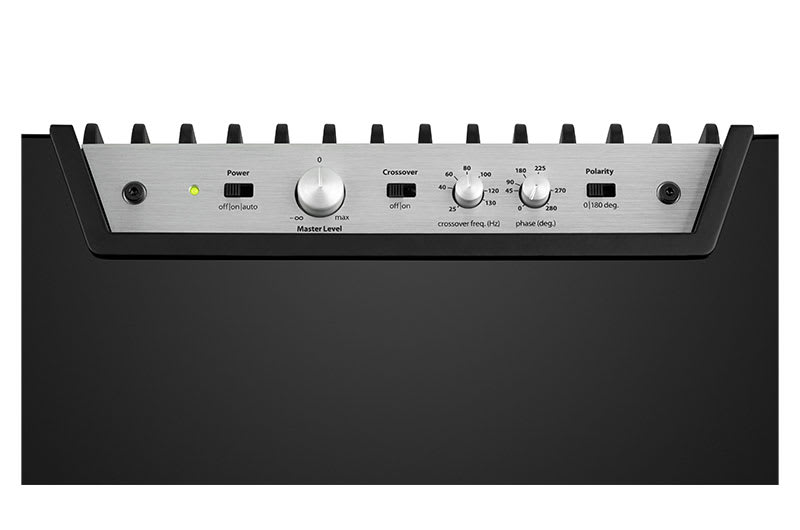

CONVENIENT CONTROL
Easily adjust sound via the cabinet’s top-panel controls. An attractive cover hides and protects the controls during normal use.
VERSATILE INSTALLATION
E-Sub subwoofers have been carefully designed for use in a wide range of applications, from full home theater systems to dedicated 2-channel music systems and desktop audio workstations.
TRUE TWO-WAY CROSSOVER
Built-in two-way crossover provides a high-pass output for your satellite amplifier, allowing easy integration into your 2-channel audio system.
E-SUB POWERED SUBWOOFER TECHNOLOGIES
DMA-OPTIMIZED WOOFER
Proprietary motor, suspension and cone modeling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output.
VENTED REINFORCEMENT COLLAR (VRC™)
The VRC collar design from JL Audio improves the rigidity and stability of the cone/spider/voice coil junction and directs airflow over the voice coil windings for improved thermal performance.
FCAM™ TECHNOLOGY
This “floating cone attach method” of bonding the surround/cone assembly to the voice coil former/spider structure ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.
ENGINEERED LEAD-WIRE SYSTEM
Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.
| General | |
|---|---|
| Sizes | 10"/12" |
| Physical dimensions (Height) | 10": 14.24" (362 mm) 12": 16.23" (412 mm) |
| Physical dimensions (Width) | 10": 13.5" (343 mm) 12": 15.5" (394 mm) |
| Physical dimensions (Depth) | 10": 16.51" (419 mm) 12": 18.39" (467 mm) |
| Weight | 10": 52.7 lbs (23.9 kg) 12": 73.5 lbs (33.3 kg) |
| Amplifier Power (RMS) | 10": 1200 W short-term 12": 1500 W short-term |
| Frequency response (Anechoic) | 10": 25-116 Hz (±1.5dB) 12": 22-118 Hz (±1.5dB) |
| Frequency response (Anechoic, -3dB) | 10": 23 Hz/120 Hz 12": 21 Hz/120 Hz |
| Frequency response (Anechoic, -10dB) | 10": 18 Hz/165 Hz 12": 17 Hz/153 Hz |
| Enclosure type | Sealed |
| Enclosure finish | Black ash or black gloss |
| Grille(s) included | Yes |
| Power modes | off, on or automatic (signal-sensing) |
| Warranty | 3 years |
| Signal Processing | |
| Unbalanced inputs | Stereo or mono (two RCA jacks) |
| Speaker/High-level inputs | Stereo or mono (removeable plug) |
| Input grounding | Isolated or grounded |
| Level control | Variable, from full mute to +15 dB over reference gain |
| Filter mode(s) | Low-pass |
| Filter slope(s) | 24 dB/octave |
| Filter frequency range | 25 Hz-130 Hz |
| Filter defeat function | Yes |
| Polarity | 0 or 180º |
| Phase | Variable, 0-280º, referenced to 80 Hz |
| Line outputs | Stereo or mono (two RCA jacks), High-pass or Pass-through |
| Parameters | |
| Effective piston area (SD) | 10": 58.78 in² (0.0379 m²) 12": 84.4 in² (0.0545 m²) |
| Effective displacement | 10": 131 cu in (2.1 L) 12": 235 cu in (3.9 L) |
| In the box | |
| In the Box | E-Sub powered subwoofer Power cord Grille (attached) High-level input plug |
