Control4 Halo Touch Remote Control in Silver - C4-HALO-TS-AS
Literature

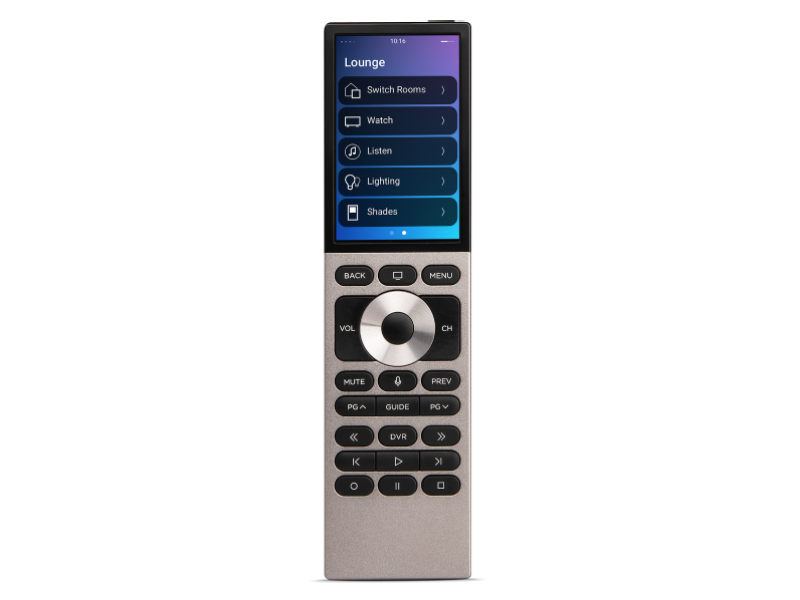

Halo Touch is the new premium universal smart remote by Control4. The handheld device includes a host of user-driven features, such as a 3.2” color touch-interface with a complement of backlit buttons, voice control, extended battery life, WiFi 2.4 and 5GHz support, and a redesigned UI with new interaction options. Halo Touch also includes end-user install capabilities, and OvrC® integration that reports battery life and Wi-Fi connectivity data. With a generational leap in functionality and a refined design, Halo will redefine the user experience.
| Specifications | |
|---|---|
| Colors | Black | Silver |
| Housing | Anodized Aluminum |
| Display | • Full Color Touchscreen LCD • Resolution: 480 x 3(RGB) x 800 • 81mm (3.2 inches) diagonal • 291 ppi • 16.7 million colors • Anti-glare |
| Ports and Interfaces | • WiFi (802.11 a/b/g/n/ac, SDIO, Main and Diversity antenna outputs) • Accelerometer • Near Field Microphone • Speaker • Ambient Light Sensor • Charging Connector |
| System | • Arm Cortex A7 single core @ 720MHz • Cortex-M4 coprocessor • Ultra Low Power Consumption Platform • Intelligent Power Management |
| System Requirements | • OS 3.3.2+ • WiFi 2.4GHz or 5GHz |
| Power | • 1900mAH Li-ion battery • External 10W charger (included) |
| Dimensions (H x W x D) | 193.6mm (7.62in) x 51.5mm (2.03in) x 19mm (.75in) |
| Weight | 165g |
| Included in the Box | • Remote • Docking Station • USB-C Power Supply • Country specific power plug • Quick Start Documentation |
| Environmental | • Operating Temp: 0° to 35° C (32° to 95° F) • Storage Temp: –20° to 45° C (–4° to 113° F) • Relative Humidity: 20–90% non-condensing • Avoid direct sunlight |
| WiFi Frequency of Operation | |
| Frequency for 2.4GHz WLAN | b/g/n(HT20) – 2412MHz – 2462MHZ |
| Frequency for 5GHz WLAN | • W52 11a/n/ac ((V)HT20/40/80) – 5180MHz – 5240MHz • W53 11a/n/ac ((V)HT20/40/80) – 5260MHz – 5320MHz • W56 11a/n/ac ((V)HT20/40/80) – 5500MHz – 5725MHz • W58 11a/n/ac ((V)HT20/40/80) – 5745MHz – 5825MHz |
| Docking Station | |
| Dimensions (H x D) | 18.0mm (.71in) x 78.00mm (3.07in) |
| Weight | 294g |
| Ports | USB-C |
