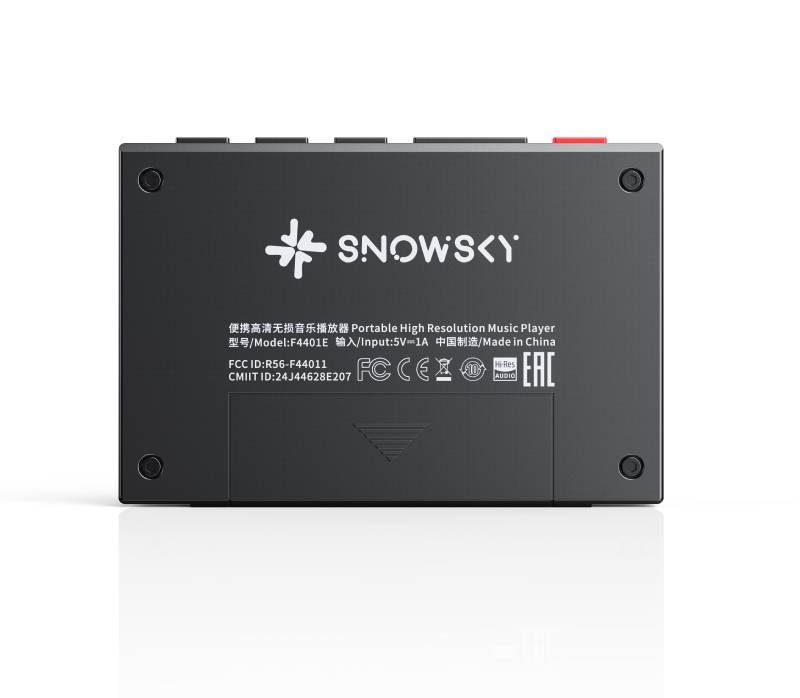

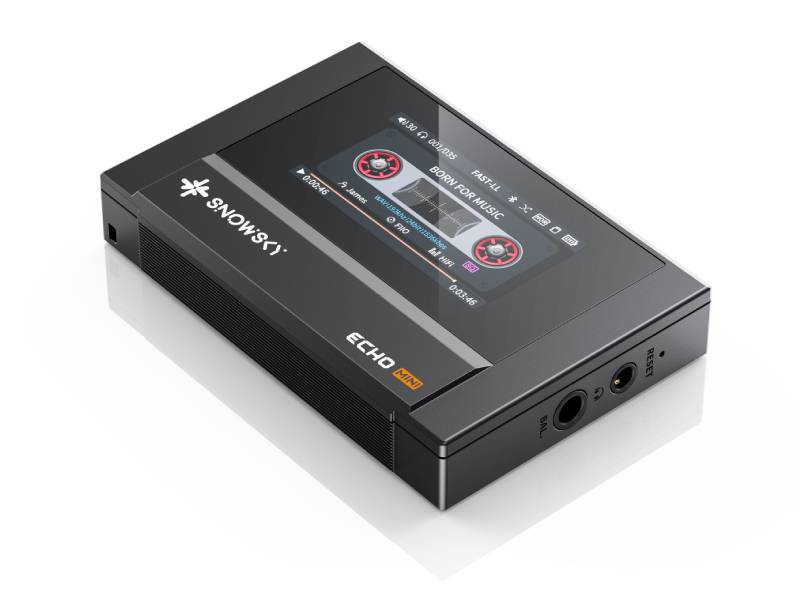

FiiO Portable High-Res Lossless Music Player in Black - Echo Mini (B)


Retro UI/Cover lyrics display | 3.5+4.4 dual outputs
Built-in dual audio DACs | USB sound card
Bluetooth transmission | microSD card expansion
Retro EQ/Self-defined EQ | Multiple format support
Supports native DSD | 15-hour long battery life
* Pictures are for reference only. The actual product may vary.

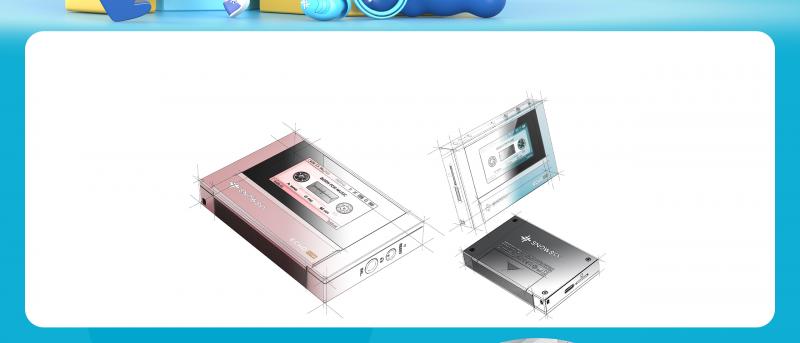

Echoes of the past The sound of passing time
As time passes, each memory echoes like a timeless melody in our hearts. The ECHO MINI is not only the return of FIIO’s pure music player but is also designed to remind users of classic devices that everybody fondly remembers. With a design that pays homage to cassette tape players and a retro dynamic UI that recreates the turning of tapes, we can once again experience the familiar notes of the past.

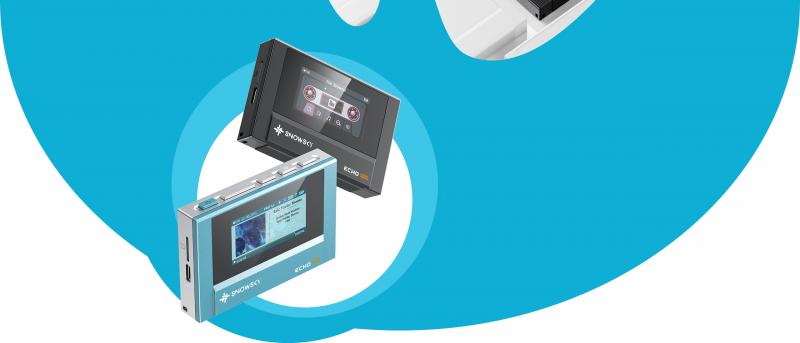

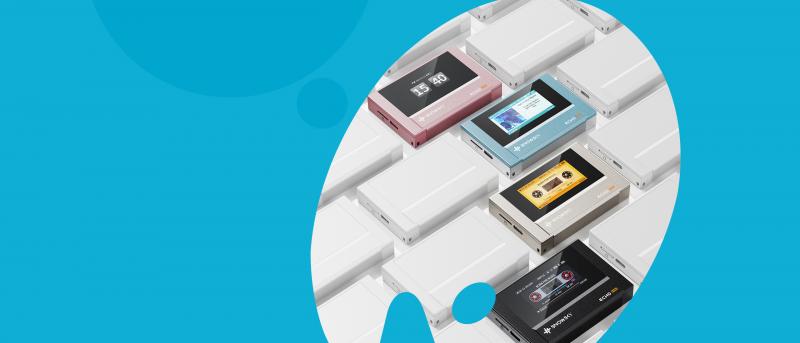

MINI player A mini explosion of color
ECHO MINI in the palm of your hand is incredibly lightweight; Retro buttons for operation bring back nostalgic feelings; Available in Titanium gold, black, cyan, and pink—simple yet elegant, colorful and mini.

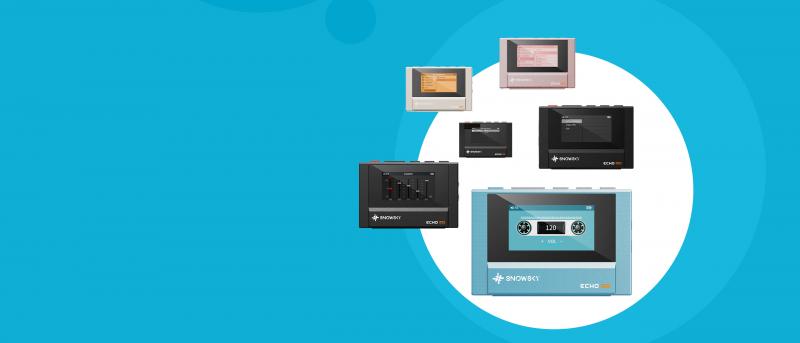

Animated retro UI with cover and
lyrics display support
The IPS full-view color screen features a variety of dynamic retro-style UIs, with support for album cover and lyrics display*.
Enjoy a unified audio-visual experience that blends vintage charm with modern design, bringing you back to the classic era of cassette Walkmans...
*Supports LRC lyrics and embedded JPG album covers.

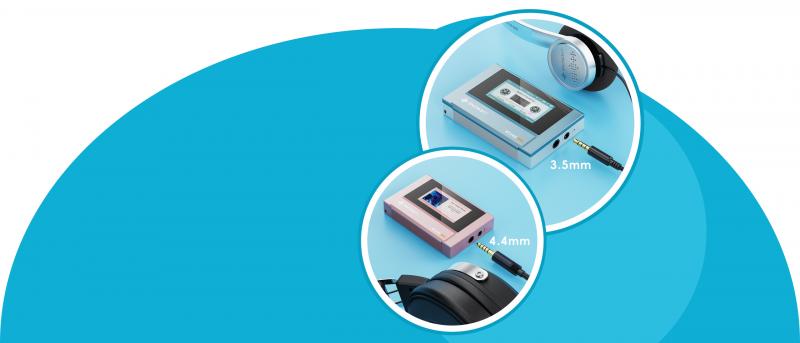

The charm of wired headphones Doubly multiplied
With a 3.5mm output, your wired headphones won’t just sit and gather dust; The 4.4mm output allows discerning audiophiles with even more listening possibilities.

A robust core Powerful output
With two high-end HiFi DACs and an independent power supply,the ECHO MINI can output up to 250mW of power despite its tiny stature, allowing it to be paired with more kinds of headphones.

Multiple format support Fully featured experience
Supports the DSD, WAV, FLAC, APE, MP3, M4A, and OGG formats;
Multiple format support, play any songs as you choose thanks to broader compatibility.

More than just a player
it' s also a USB sound card
Whether connected to a phone or a computer, it' s plug-and-play with no additional drivers required.

Listen with Bluetooth Unchained from wires
Bluetooth version 5.3, connect to Bluetooth headphones and speakers* for more comfortable listening.
*Due to limitations in Bluetooth protocols and compatibility, certain brands or models of headphones/speakers may not be supported.

15-hour long battery life Faithful music companion
The large 1100mAh battery allows for more than 15 hours of listening; Whether commuting or travelling, the ECHO MINI is a faithful music companion that fits in the palm of your hand.

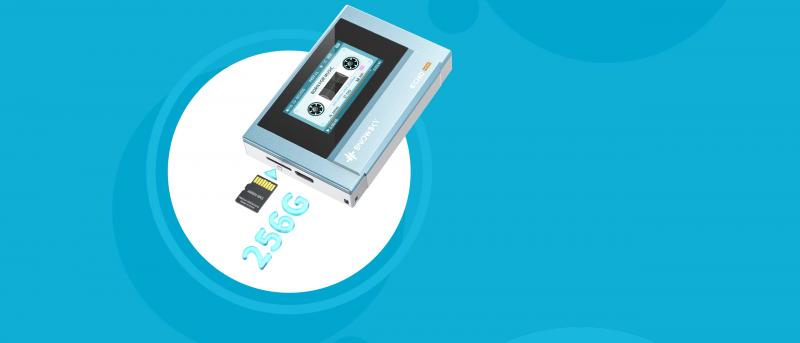

Supports microSD card Unpack your treasure trove of music
The player features 8GB of built-in storage and supports up to 256GB microSD card expansion; Relive the classics you’ve accumulated over the years in your own personal music collection.

Rich features with thoughtful design
The ECHO MINI supports gain adjustment, custom EQ tuning, and 120-step precise volume control. It also supports the “Add to Favorites” function, allowing you to save your beloved tracks, along with fast-forward and rewind functions.

Gold label certified sound
Independent audio oscillators more accurately reproduce audio signals; The result is clearer and more detailed sound, allowing you to even more easily immerse yourself into the music.

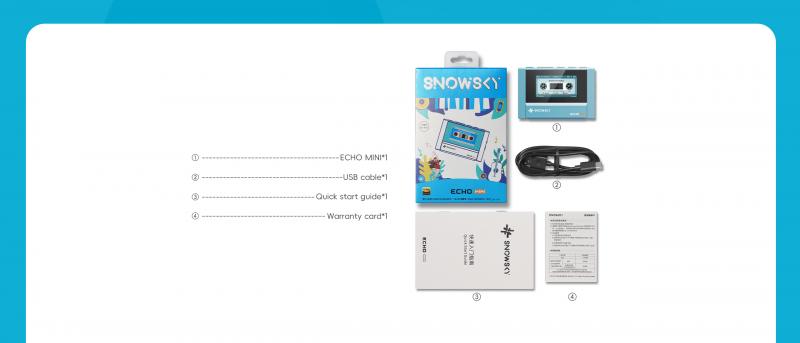

Packing list

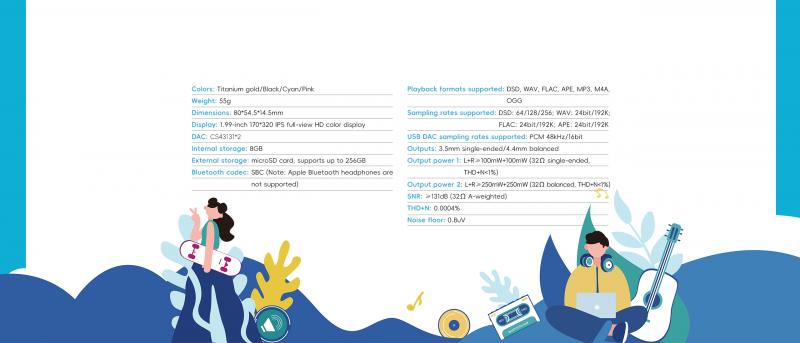

Basic specifications
| General Specifications | |
|---|---|
| Name/Model | ECHO MINI |
| Hardware solution | DAC: CS43131*2 |
| Color | Black/Sky blue/Pink/Titanium gold |
| Dimensions | 80*54.5*14.5mm |
| Weight | 55g |
| Adaptive impedance | PO: 16~150Ω |
| Display | 1.99-inch 170*320 IPS full-view HD Color display |
| Max. supported sampling rate | FLAC:24bit/192K APE:24bit/192K MP3/OGG/M4A/WMA SACD and DTS formats are not supported |
| EQ | Built-in support for EQ adjustment of audio sources up to 16bit/192K |
| microSD card maximum supported storage | 256G NTFS is not supported |
| Bluetooth | Supports Bluetooth SBC transmission (Note: Apple Bluetooth headphones are not supported) |
| Battery life | 15h (output amplitude: 40mV) |
| Battery specification | Lithium battery 1100mAh OS RTOS |
| Buttons and ports | |
| Type-C port | Charging/Data transfer |
| 3.5mm port | Single-ended output |
| Button | Multifunction button |
| 4.4mm port | Balanced output |
| microSD card slot | microSD card placement |
| Reset hole | Device resetting |
| Audio Parameters -Performance and parameters of headphone output (3.5mm) | |
| Output power | L+R≥130mW+130mW (16Ω, THD+N<1%, USB IN) L+R≥100mW+100mW (32Ω, THD+N<1%, USB IN) L+R≥10mW+10mW (300Ω, THD+N<1%, USB IN) |
| Audio Parameters - Performance and parameters of headphone output (3.5mm) | |
| Peak output voltage | ≥1.8V (32Ω, THD+N<1%) |
| Output impedance | <0.4Ω |
| Frequency response | 20Hz~20kHz, attenuation≤0.1dB 20Hz~50kHz, attenuation≤0.1dB |
| Crosstalk | ≥73dB (1kHz, 32Ω) |
| Noise floor | 0.8uV"A" |
| THD+N | <0.0006% (-5dB,32Ω) |
| SNR | ≥127dB (32Ω A-weighted) |
| Audio Parameters - Performance and parameters of headphone output (4.4mm) | |
| Output power | L+R≥150mW+150mW (16Ω, THD+N<1%, USB IN) L+R≥250mW+250mW (32Ω, THD+N<1%, USB IN) L+R≥43mW+43mW (300Ω, THD+N<1%, USB IN) |
| Peak output voltage | ≥2.8V (32Ω, THD+N<1%) |
| Frequency response | 20Hz~20kHz, attenuation≤0.1dB 20Hz~50kHz, attenuation≤0.1dB |
| Output impedance | <0.7Ω |
| Crosstalk | ≥125dB (1kHz, 32Ω) |
| Noise floor | 0.8uV"A" |
| THD+N | <0.0004% (-5dB,32Ω) |
| SNR | ≥131dB (32Ω A-weighted) |
