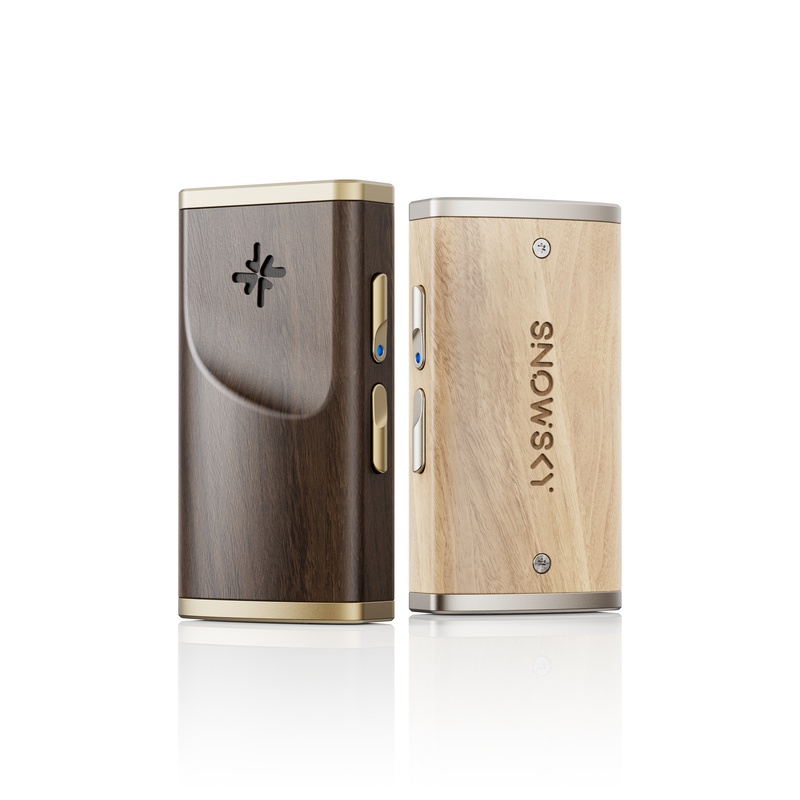

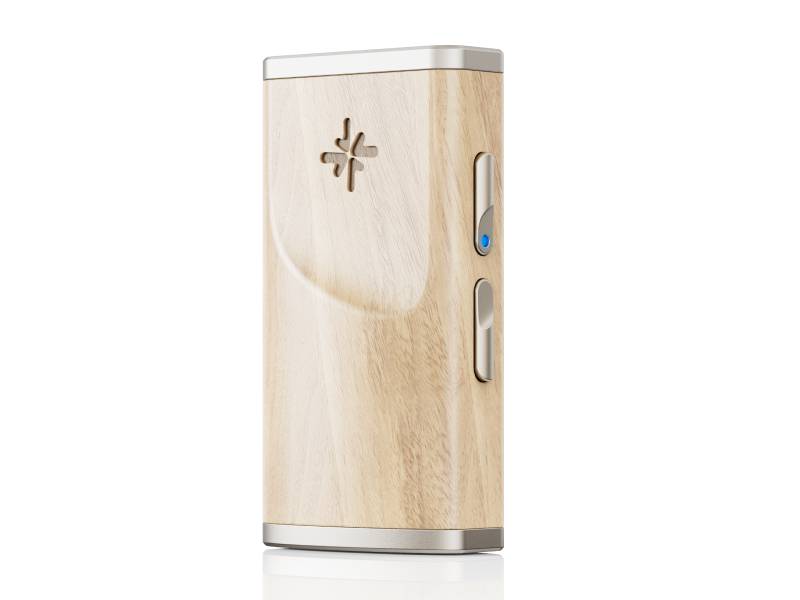

FiiO DAC And Headphone Amplifier - Melody (M)

North American wooden housing

High-performance DSP | Dual DAC

10-band PEQ | 3.5 SE + 4.4 balanced outputs

Supports in-line controls and mics

Low heat and power consumption

* product drawings are for reference only, all in kind shall prevail

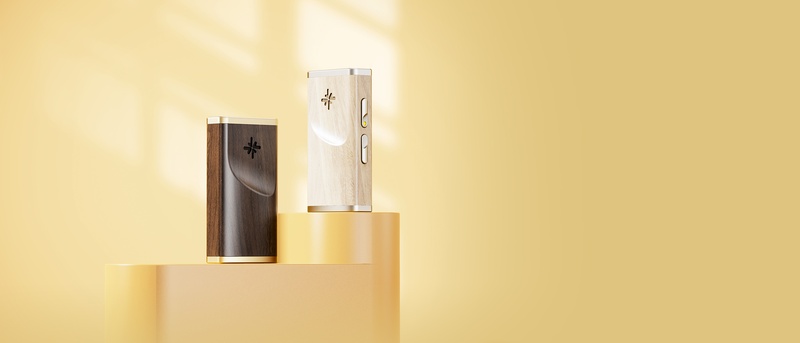

Wooden retro portable headphone amp Melody Combining natural wood with modern HiFi audio Experience the rhythm and touch of nature.

Selling points

10-band PEQ

Wooden housing

Two volume/button modes

RGB sampling

rate indicator

Ultra low-

power mode

3.5 SE + 4.4, balanced outputs

Dual DAC

Be the master of your sound

Familiar FIIO arc

Supports PCM 384kHz/DSD256

Suitable for consumer/ professional usage

Tailored for you

Practical yet atmospheric

Protecting your phone' s battery

Supports SPDIF

Precisely calibrated

10-band PEQ Be the master of your sound

The built-in advanced DSP allows for a 10-band high-precision PEQ! Besides the built-in PEQ presets, there are three custom PEQ profiles you can freely adjust, allowing you to be the master tuner of your sound.

The Melody also supports the FIIO Control App and web link control, through which PEQ settings can be saved and shared, adding some fun with others.

*Due to system permission restrictions, iOS devices cannot connect to or control MELODY via the FIIO Control APP.

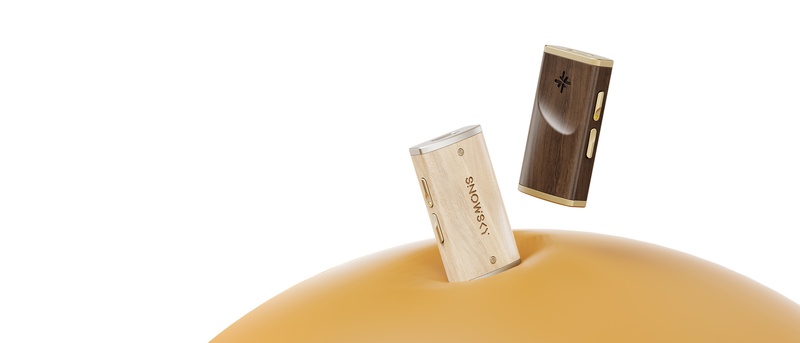

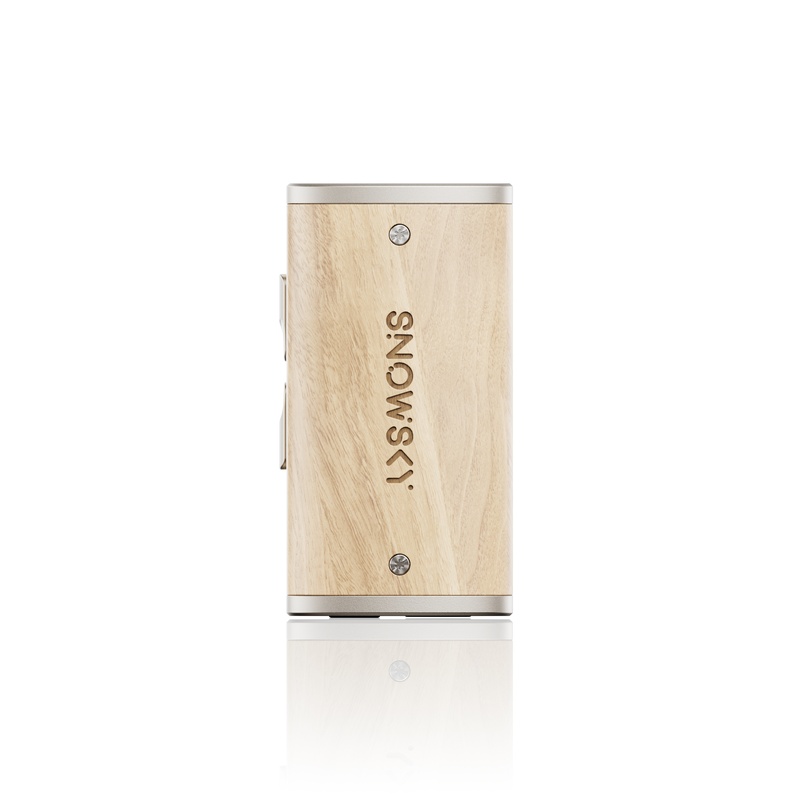

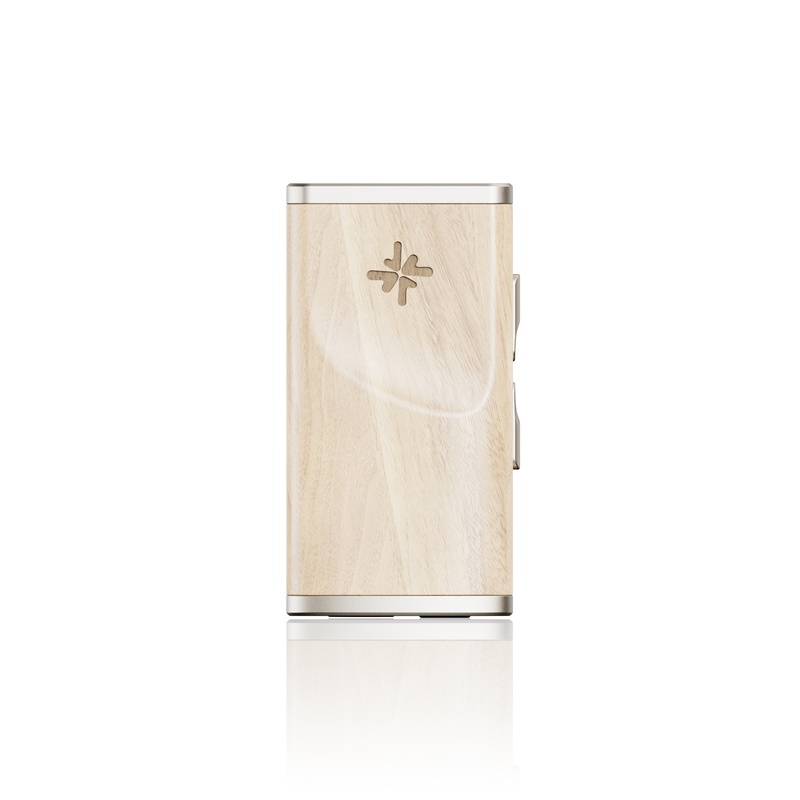

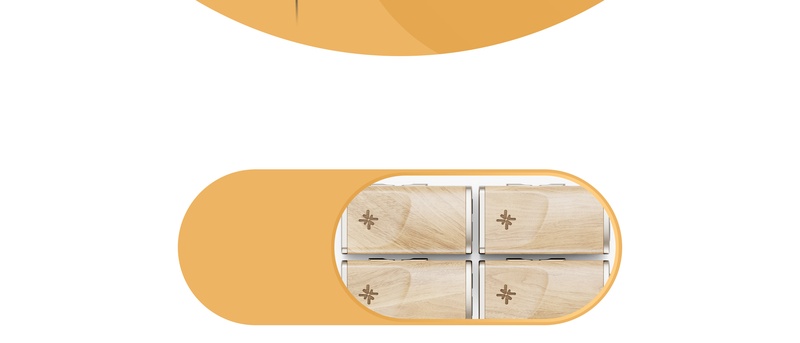

Wooden housing, Naturally charming

through precision CNC, grinding, oiling, air drying and other dozens of complex processes, to create a stable wood ingenuity.

Being made of high-quality aged wood imported from North America, each Melody dongle has its own unique texture and color, with every grain contributing to a unique sound.

The wood has been carefully processed for quality, through precise CNC machining, polishing, oiling, drying, and other intricate processes.

The wooden housing remains timeless thanks to its warm, smooth touch as well as the color naturally darkening over time, becoming ever more lustrous.

Familiar arc

Minted with elegance

The headphone amplifier’s casing and buttons are adorned with FIIO’s signature arcs.

Blade-like elegance merges with the warmth of wood, adding a dynamic touch to a classical design.

The arcs also fit naturally to the fingers, making it enjoyable to use. These small details are just some examples of the user-centric design of the Melody.

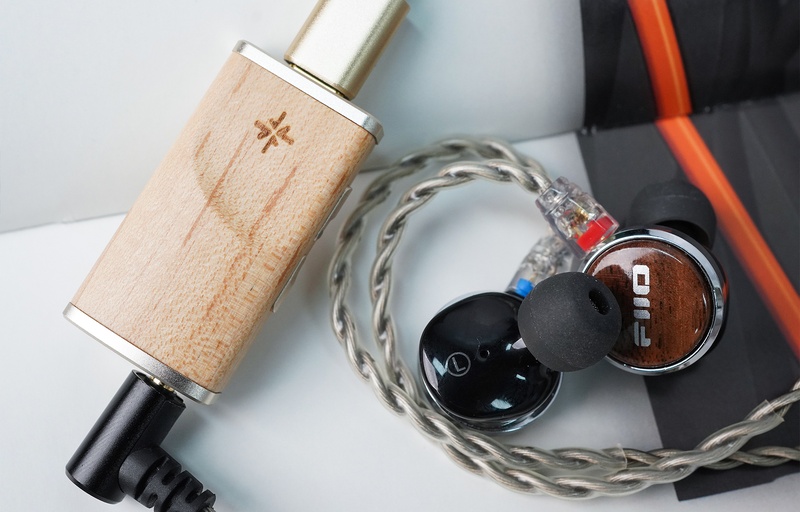

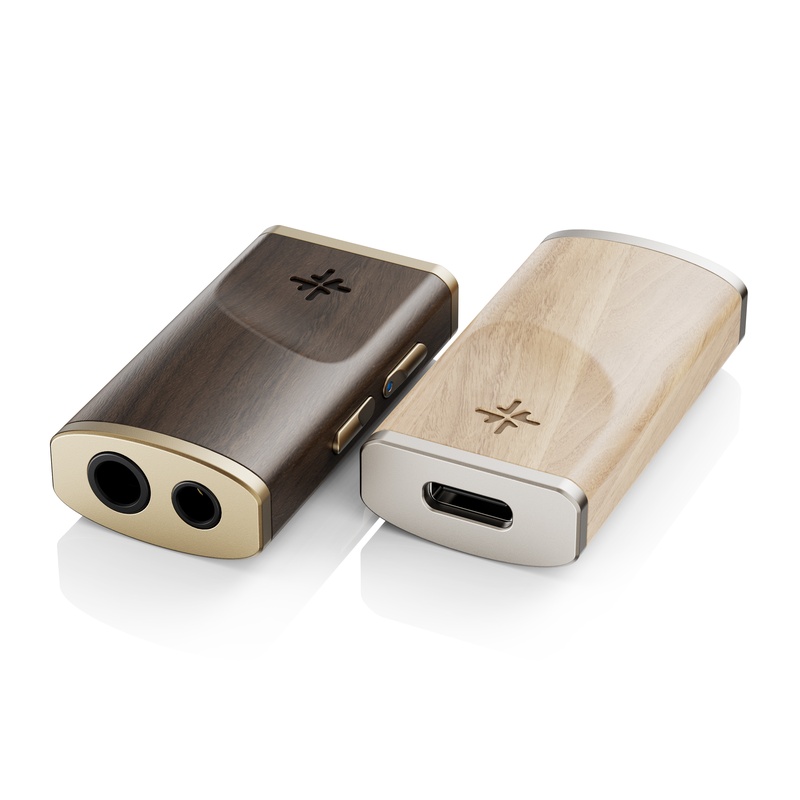

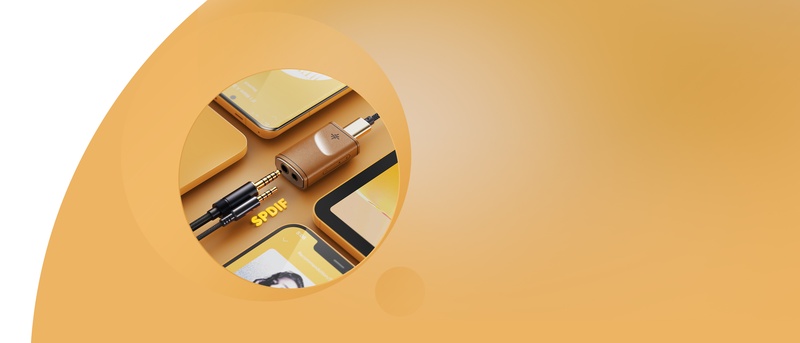

3.5 SE + 4.4 balanced outputs Supports SPDIF and coaxial output

3.5mm SE output: Highly versatile, and is compatible with in-line controls and microphones. With an adapter cable, you can also use it to output SPDIF and coaxial signals, allowing the Melody to provide high-fidelity and stable output to various professional audio and video equipment.

4.4mm balanced output: Compatible with balanced headphone cables, allowing for greater power output and more detailed sound.

Serious parts

Precisely calibrated

With its high-performance USB chip, audiophile-grade DSP, and dual Cirrus 43131 DACs, the FIIO software and hardware development teams worked hard to make the Melody reach new heights in objective measurements, heat and power consumption, as well as in subjective listening experiences.

Supports PCM 384kHz/

32bit and DSD256

Hi-Res Audio certified

With support up to PCM 384kHz/32bit and DSD256, you are sure to hear every last detail in the music.

Hi-Res Audio certification means you can be assured of its great sound quality after being professionally reviewed.

Supports in-line controls

with mics and call recording

The 3.5mm jack supports in-line controls and call recording. Simply use your headphones’ in-line controls to conveniently play and pause, switch between tracks, and adjust the volume.

*Apple phones and some Android phones may not support in-line controls and calls due to system permissions. *In-line controls and mics are supported on Huawei phones when Melody is in UAC1.0 mode.

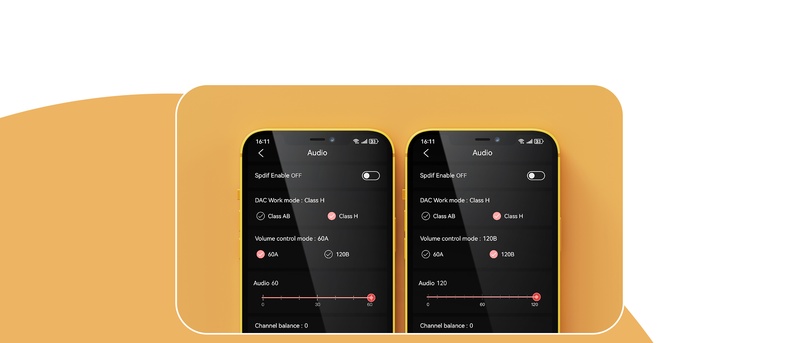

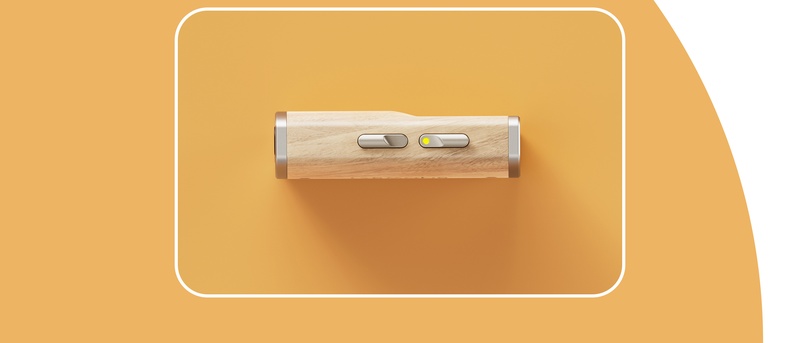

Two volume/button modes, A thoughtful touch

Dual volume adjustment modes:

Mode A： 60-step quick adjustment

Choose a control scheme that better fits your usage habits and needs.

Mode B： 120-step fine adjustment

Mode A：

Mode B：

Button mode:

*Volume adjustment mode can only be changed in FIIO Control app or through the web

Short press for volume +/－

Short press for next/previous track

Long press for 2 seconds for next/ previous track

Long press for 2 seconds to continuously adjust volume

RGB sampling rate indicator, Practical yet atmospheric

Different colors correspond to different sampling rates, making it easy to tell at a glance what format the current audio is in.

Decoding state:

*RGB indicator light can be turned off in the FIIO Control APP on Android devices.

Ultra low-power mode Protecting your phone' s battery

Thanks to its advanced built-in microprocessor and FIIO’s cutting-edge software development, Melody delivers excellent audio while making sure power consumption and heat generated are low.

When music playback stops, Melody’s ultra-low standby power consumption drops below 10mA. Set a sleep timer, and the device will seamlessly transition into sleep mode after being inactive for a specified amount of time – no need to worry about waking up to a dead phone the next morning.

Detachable cable, multi-platform support Wide compatibility

The Melody has a detachable cable, and is compatible with Android/iOS/Windows/Mac as well as other platforms.

The Melody supports switching between UAC1.0 and UAC2.0 modes. The UAC1.0 mode makes it compatible with non-Android systems like the PS5 and Switch for a better gaming experience.

Packing list

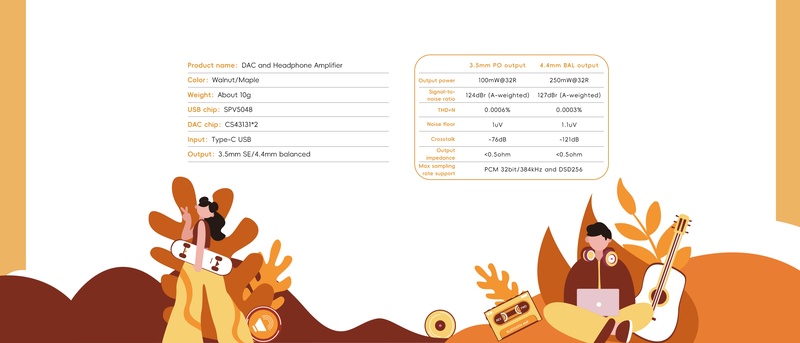

Basic Product Parameters
