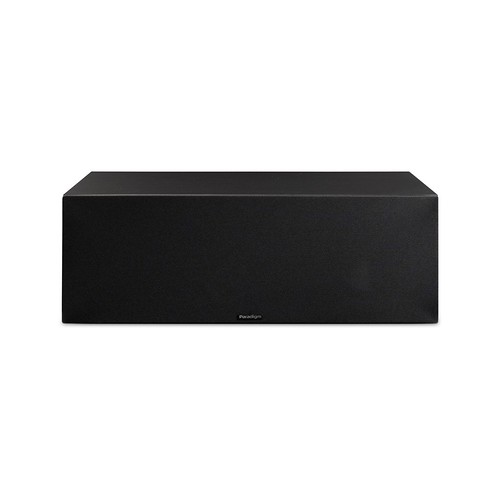

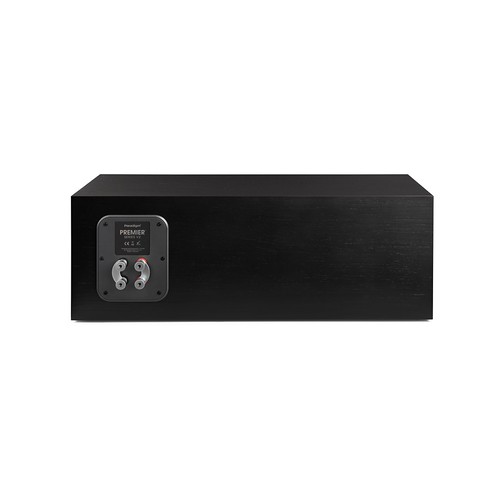

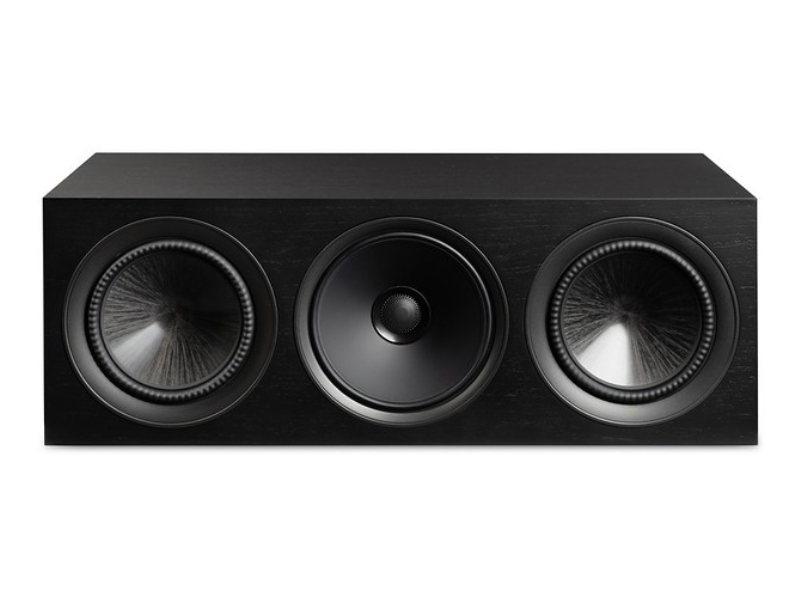

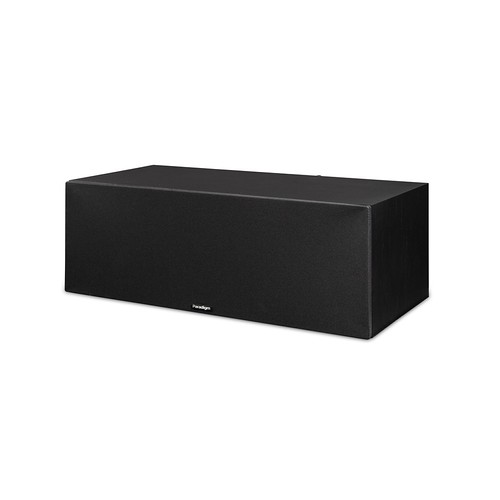

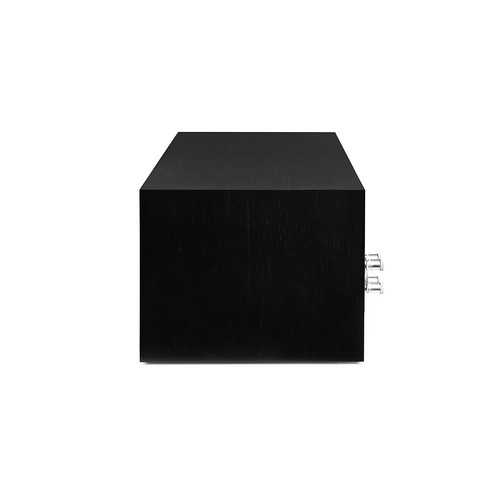

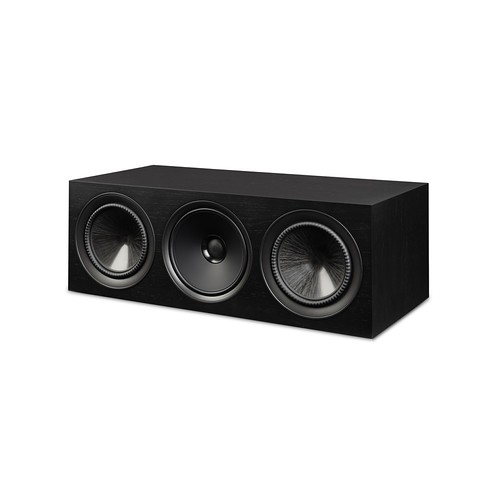

Paradigm Premier Series V2 LCR Speaker in Black Walnut - Premier 520LCR v2 (BW)
The 520LCR v2 is a dedicated Left/ Center/Right solution designed for high-performance theater. Its acoustic suspension (sealed) design allows for flexible placement in cabinets or freestanding without compromising clarity. A Coaxial AL-MAG™ midrange ensures clear dialogue and precise imaging, creating a seamless front stage with balanced, natural sound.
| Specifications | |
|---|---|
| DESIGN | 4-driver, 3-way sealed LCR speaker with AL-MAC, AL-MAG,Carbon-X, OSW™, and PPA™ |
| CROSSOVER | 2nd Order Electro-acoustic at 1.5kHz (tweeter/midrange), 2nd Order Electro-acoustic at 650Hz (midrange/woofer) |
| HIGH-FREQUENCY DRIVER | 1” (25mm) AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) and Perforated Phase-Aligning(PPA™) Tweeter Lens, ferro-fluid damped / cooled |
| MID FREQUENCY DRIVER | Coaxial 6” (152mm) AL-MAG™ Cone, a 2” high-temp multilayered voice coil with Apical™ former, Patented Dual-Sync™ Continuous Flux Motor |
| BASS FREQUENCY DRIVER | Two 6” (152mm) Ultra-High Excursion CARBON-X™ Unibody Cone, Gen3 Active Ridge Technology (ART™) with Vertical Mounting System, and a 1” hightemp multi-layered voice coil with ventilated Apical™ former |
| FREQUENCY RESPONSE ON-AXIS | ±3dB from 75Hz - 23kHz |
| FREQUENCY RESPONSE 30° OFF-AXIS | ±3dB from 75Hz - 20kHz |
| LOW FREQUENCY EXTENSION** | 50Hz (DIN) |
| SENSITIVITY ROOM / ANECHOIC | 93dB / 90dB |
| SUITABLE AMPLIFIER POWER RANGE | 15-120 Watts |
| MAXIMUM INPUT POWER† | 80 Watts |
| IMPEDANCE | Compatible with 8 ohms |
| WEIGHT | 31.1 lbs (14.1 kg) each |
| DIMENSIONS (h x w x d) * | 8.3” x 23.4” x 12” (21.1 cm x 59.4 cm x 30.5 cm) |
| FINISHES | Piano Black, Black Walnut, Walnut, Satin White |
