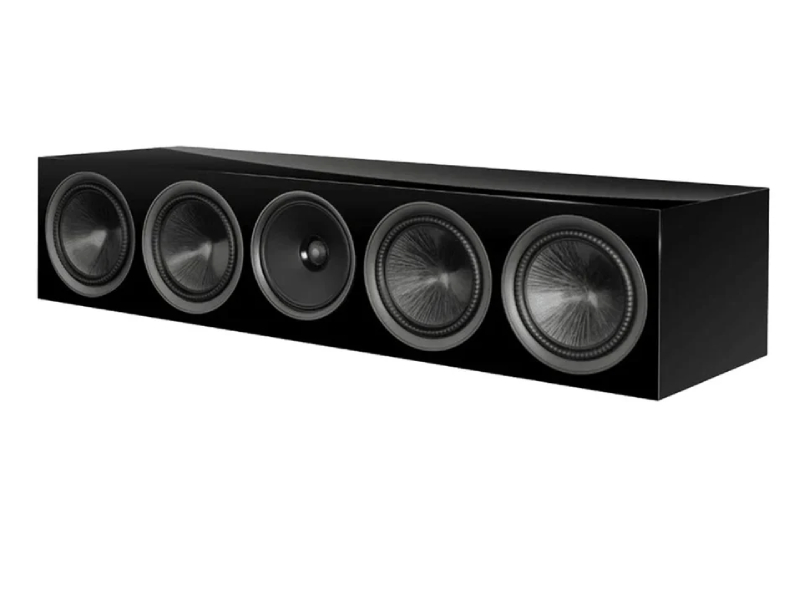

Paradigm Premier 620C V2 Series Center Channel Speaker In Piano Black - Premier 620C v2 (PB)
Designed for large-scale cinema, the 620C v2 is the ultimate center channel.It utilizes a 4-driver array supported by dual passive radiators to deliver deep,impactful low-end while maintaining the sealed cabinet benefits for cabinet placement. This configuration ensures crystal-clear dialogue and an authoritative presence that anchors the largest home theater systems.
| Specifications | |
|---|---|
| DESIGN | 4-driver, 2-passive radiator,3-way sealed center channel speaker with AL-MAC, AL-MAG,Carbon-X, OSW™, and PPA™ |
| CROSSOVER | 2nd Order Electro-acoustic at 1.7kHz (tweeter/midrange) ,2nd Order Electro-acoustic at 750Hz (midrange/woofer) |
| HIGH-FREQUENCY DRIVER | 1” (25mm) AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) and Perforated Phase-Aligning (PPA™)Tweeter Lens, ferro-fluid damped / cooled |
| MID FREQUENCY DRIVER | Coaxial 6” (152mm) AL-MAG™ Cone, a 2” high-temp multi-layered voice coil with Apical™ former, Patented Dual-Sync™ Continuous Flux Motor |
| BASS FREQUENCY DRIVER | Two 7” (177mm) Ultra-High Excursion CARBON-X™ Unibody Cone, Gen3 Active Ridge Technology (ART™) with Vertical Mounting System, and a 1” hightemp multi-layered voice coil with ventilated Apical™ former |
| PASSIVE RADIATOR | Two 7” (177mm) Ultra-High Excursion CARBON-X™ Unibody Passive Raditators with Gen3 Active Ridge Technology (ART™) and Vertical Mounting System |
| FREQUENCY RESPONSE ON-AXIS | ±3dB from 49Hz - 23kHz |
| FREQUENCY RESPONSE 30° OFF-AXIS | ±3dB from 49Hz - 20kHz |
| LOW FREQUENCY EXTENSION | 33Hz (DIN) |
| SENSITIVITY ROOM / ANECHOIC | 93dB / 90dB |
| SUITABLE AMPLIFIER POWER RANGE | 15 - 180 Watts |
| MAXIMUM INPUT POWER† | 120 Watts |
| IMPEDANCE | Compatible with 8 ohms |
| WEIGHT | 48.1 lbs (21.8 kg) each |
| DIMENSIONS (h x w x d) | 8.9” x 41” x 13.7” (22.6 cm x 104.1 cm x 34.8 cm) |
| FINISHES | Piano Black, Black Walnut, Walnut |
