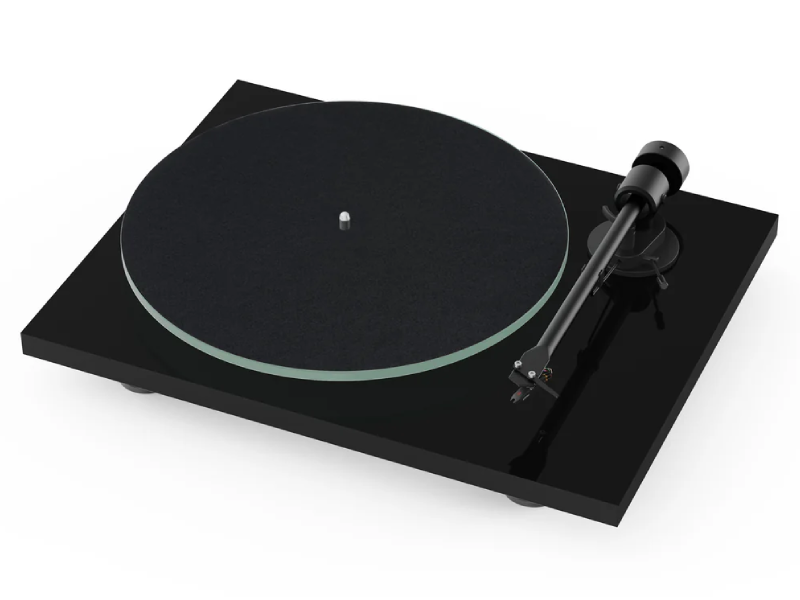

Project Audio T1 EVO Phono Turntable - PJ29864770

SKU : PJ29864770

$699.99
OR
$32.08/mo
+ taxes/fees
Up to 24 month financing
Scheduled Delivery
Contact Us For Availability, Limited Quantities May Be Available
Contact Us

Literature

T1 EVO Phono – including built-in switchable phono preamp

The T1 EVO Phono aims to deliver true high-fidelity sound on a limited budget. Boasting premium materials, stylish aesthetics and a rich, lively sound, the extensive development process has ensured that there has been no compromise in the sound performance when achieving such an affordable price.

The stylish CNC-machined plinth, available in High Gloss Black, Satin White or Walnut finish, features no plastic parts and is carefully manufactured to ensure there are no hollow spaces inside, therefore avoiding unwanted vibrations within the chassis.

Carrying this philosophy through the design, the glass platter is also a heavy, zero-resonance design – again avoiding the flaws of plastic or lightweight steel alternatives. Finally, the purpose-chosen turntable feet also do a good job of isolating the T1 EVO from ambient vibrations around your hi-fi system.

Audiophile Design

In the T1 EVO Phono, the motor drives a belt, attached to a new bigger sub-platter, which is mounted into an ultra-precise 0.001mm main bearing with a hardened steel axle and brass bushing.

With its straight, 8.6” effective length and stiff aluminium construction, the one-piece tonearm also features low-friction bearings for absolute accuracy in use.

Supplied with an Ortofon OM 10 Moving Magnet cartridge, featuring an elliptical diamond stylus tip; this is a true hi-fi playback system with no corners cut.

Features

  • With built-in switchable phono preamplifier
  • Electronic speed change for all models
  • Pre-adjusted Ortofon OM10 cartridge
  • Anti-resonant sub-platter design
  • Heavy 8mm, zero-resonance blasted-glass platter
  • Precision CNC‘d heavy full chassis
  • 8,6“ highly precise and light aluminium tonearm
  • Low friction, vibration free tonearm bearing
  • One-piece tonearm design with integrated headshell
  • Low-capacitance Connect it Phono E RCA cable incl.
  • Vibration absorbing feet
  • Elegant dustcover with adjustable hinges
Technical Specifications
Speed:33, 45 (electronic speed change)
Principle:Belt drive
Speed variance:33: 0.7% 45: 0.6%
Wow & Flutter:33: 0.25% 45: 0.23%
Platter:Heavy 8mm, blasted-glass platter with felt mat
Main bearing:Stainless steel/brass
Signal to noise:65dB
Tonearm:8.6” aluminium
Effective arm length:218.5 mm
Overhang:22.0 mm
Effective tonearm mass:8.0 g
Counterweight for mass:5 - 10g (pre-mounted)
Tracking force range:0 - 50mN (17.5 mN pre-adjusted)
Outputs:RCA
Included accessories:dustcover, feltmat, power supply, high-quality phono/line RCA cable
Power Supply:110 - 240V/50, 60Hz; 15 V DC 800mA
Power consumption:4.5 Watt max
Dimensions:415x100x335 mm (WxHxD)
Weight:3.8 kg net
