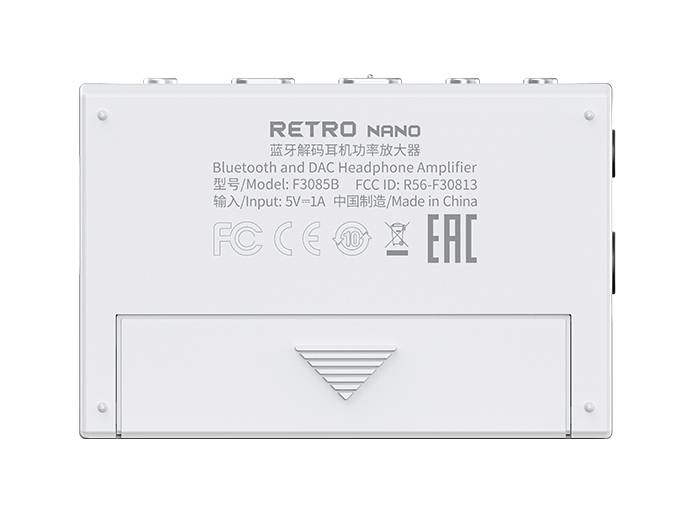

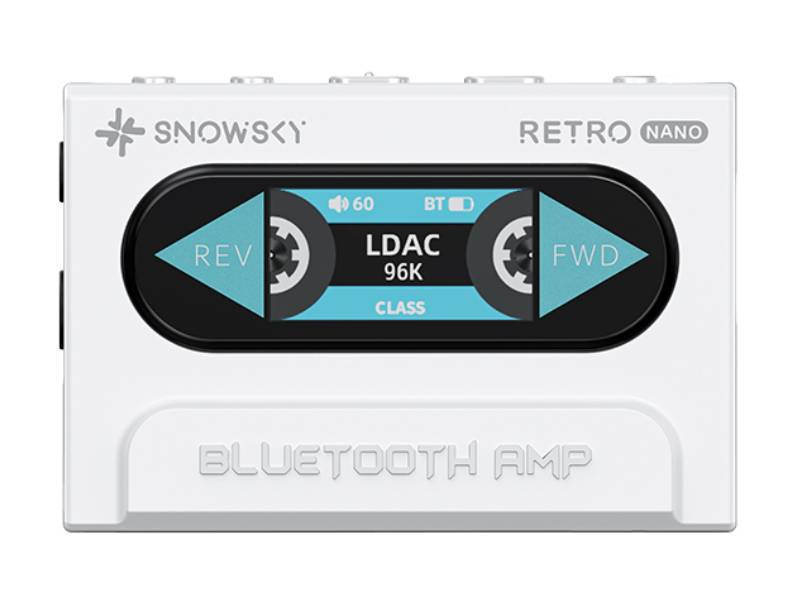

FiiO Bluetooth DAC and Headphone Amplifier - Retro Nano (W)

Bluetooth DAC and Headphone Amplifier

Classic tape player look | Dynamic retro UI  | Replaceable battery  Specially tuned retro sound presets | Bluetooth and wired modes  LDAC high-res Bluetooth

*Picture are for reference only.The actual product mayvary.

FIIO’s new sub brand —— SNOWSKY The brand is focused on being youthful, fashionable, unique and fun, while also bringing the traditional FIIO hallmarks of quality and great user experience. RETRO NANO, SNOWSKY’s debut product, is inspired by vintage tape recorders but also packs much modern tech. It is not just an eye-catching Bluetooth DAC and amp - it is a musical device toy that you can explore and relive the music of any era.

Note: Due to the larger memory usage of Android 13, and the JM21 being limited to 3GB of RAM due to cost constraints, it is recommended to only install streaming music apps for optimal user experience. Other apps are not recommended for installation. Additionally, to ensure sound quality and performance, please avoid running multiple apps simultaneously.

Retro revival

Listening to great oldies

A variety of fun UIs, changeable with a single press A dynamic UI that simulates a tape turning, bringing the classics to life; The blurry memories of listening to tapes in the past start to become clearer...

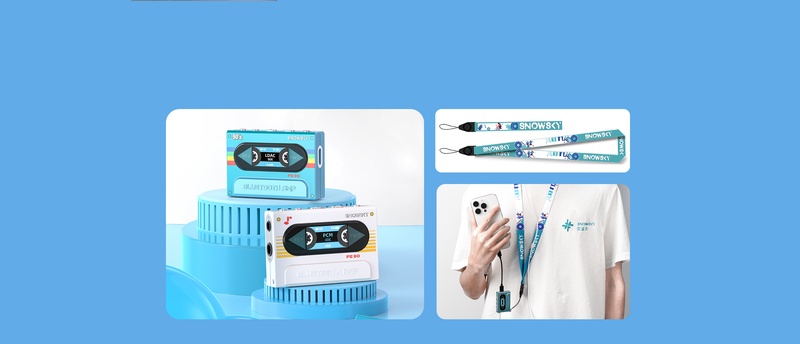

Two classic colors

Truly stylish

Classic white and blue colors can be decorated with personalized stickers for an even more vintage feel; Add your own lanyards and stickers for a stylish appearance that is uniquely yours.

*Includes two sets of stickers randomly; the  lanyard should be purchased separately.

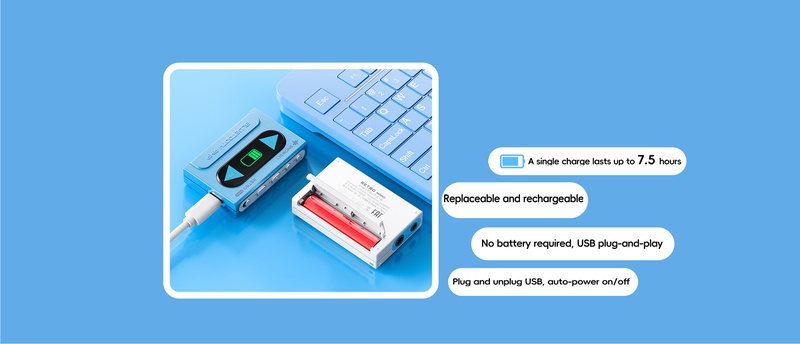

Endless power

Unlimited battery life

Endless usage even without a battery

The replaceable and rechargeable 3.7V lithium battery lasts up to 7.5 hours on a single charge; Out of power? Simply swap for a freshly-charged battery and keep going.

The USB port provides independent power, making it easy to activate the device. Just plug and play! Enjoy music in your car without fear of extreme temperatures; connect with speakers without worrying about battery aging or degradation.

*Comes with one randomly FIIO custom high-capacity 3.7V 450mAh lithium battery.

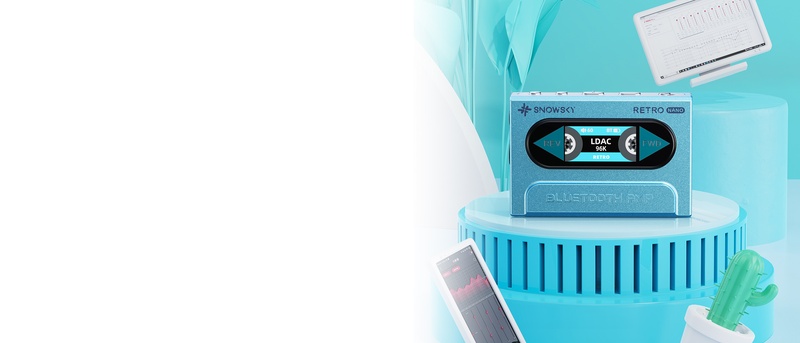

Specially tuned retro sound presets

Sound of past eras

Included are 8 sound presets, including retro-sounding presets that give off the sound of past eras; Supports DIY tuning on the companion app or on the web, allowing you to easily tune to your own musical style!

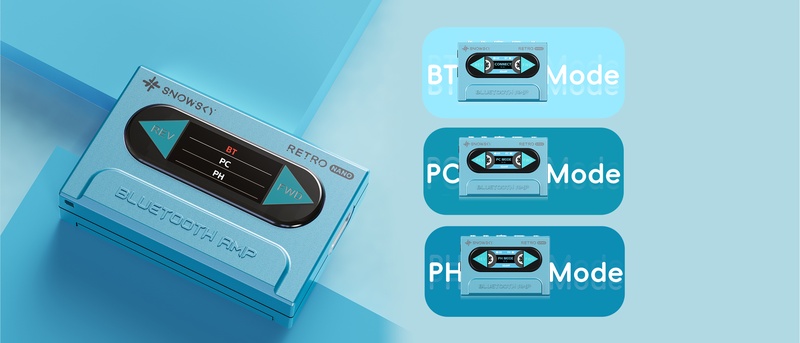

Bluetooth/wired modes

Easily switch between multiple devices

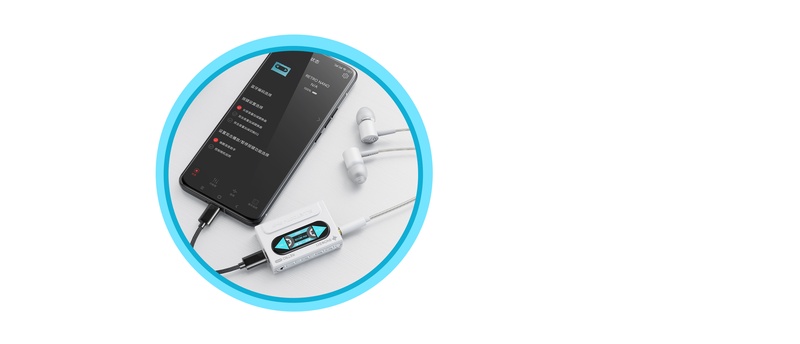

Simply power it on with a single touch. It supports connections with phones, tablets, computers, and other devices via Bluetooth and a USB Type-C data cable. Double press the multi-function button to easily switch between Bluetooth (BT), computer (PC), and PHONE modes.

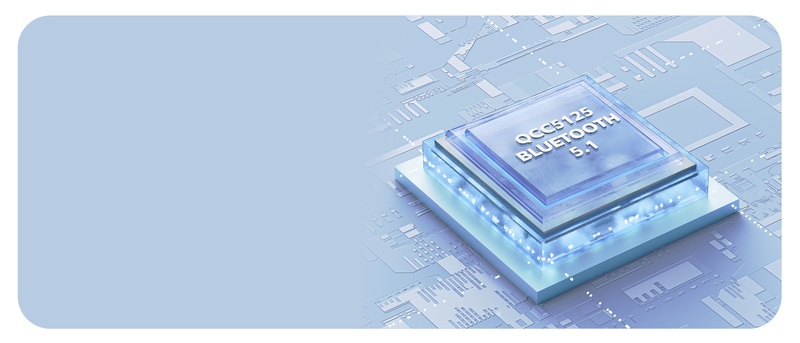

Getting to the heart of music Thanks to a great “core”

It is equipped with a Qualcomm QCC5125 that allows support for Bluetooth 5.1 as well as the LDAC/aptX Adaptive/aptX LL audio codecs. 96kHz high-res audio is possible in both Bluetooth and wired modes for noticeably improved sound.

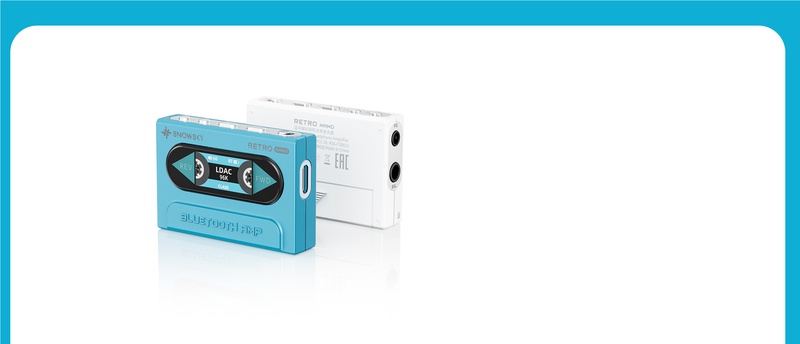

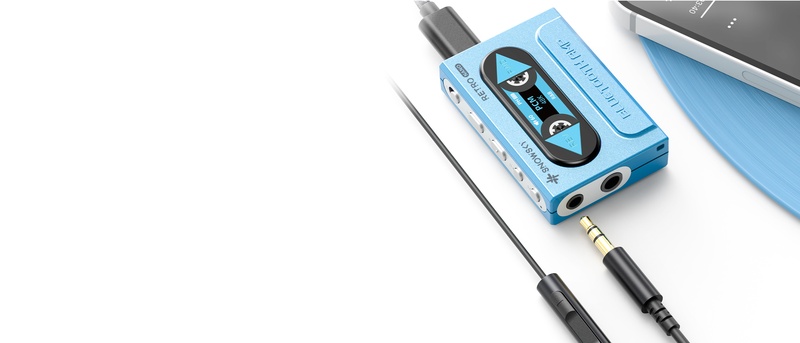

Dual headphone jacks

In-line control support

Besides the traditional 3.5mm headphone jack, the device also sports a 4.4mm headphone jack for even greater compatibility. The 3.5mm jack supports in-line controls of the CTIA protocol, allowing you to easily listen to music, take calls, play games, and other tasks.

*Noise reduction in calls is supported for clearer and more natural voices.

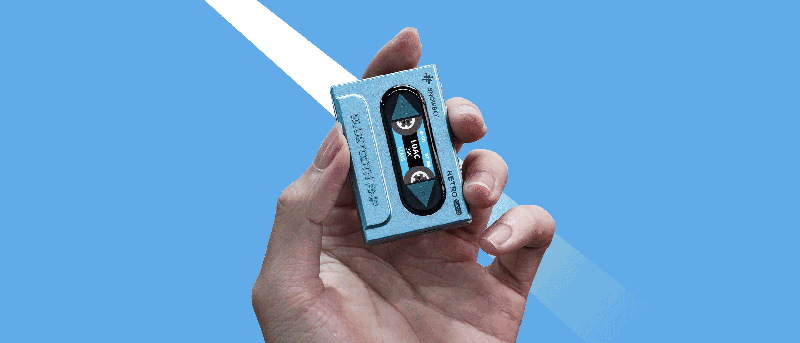

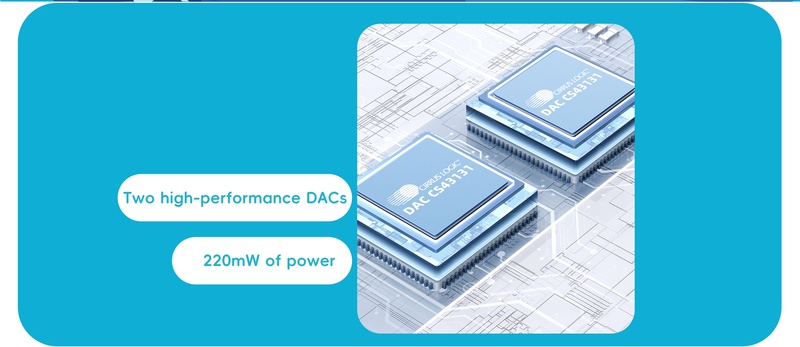

NANO-sized

Mega capable

It features a compact body that you can easily take anywhere; Two high-performance DACs are combined with amps generating up to 220mW of power for an enjoyable listening experience.

Intelligent app connection

Unlocking greater possibilities

It supports being connected to the FIIO CONTROL APP to unlock even more functionality, and also supports OTA updates for even more possibilities.

Asynchronous USB DAC

Supports 384kHz/32bit

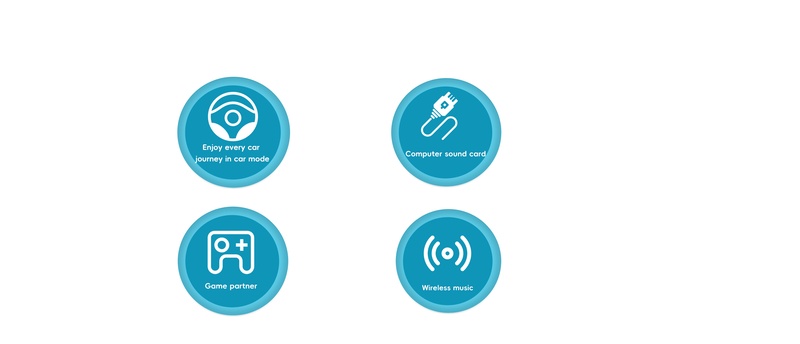

Unlimited ways to play

Get it all here!

Turn on car mode to make every journey fresh and exciting.

*Patent no：ZL201710563549.5

Improve the audio coming from your computer and enjoy more immersive music, videos, and games.

Turn on the computer or phone mode and to make the audio from your PS5, Switch, and other gaming consoles even more immersive.

Connect to active speakers to instantly turn them into Bluetooth speakers, for more convenient and enjoyable listening.

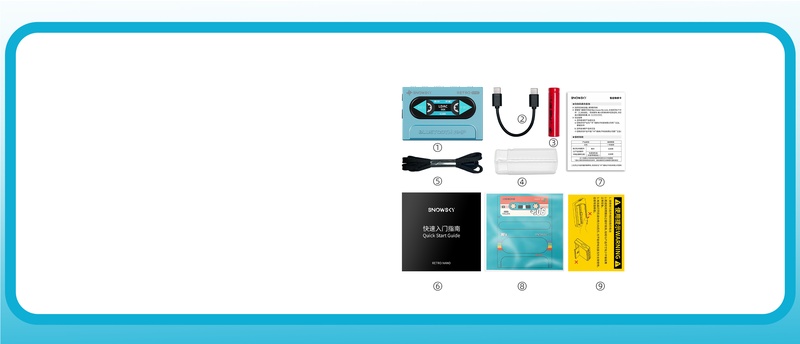

Packing list

①---------------------------------  RETRO NANO*1 ②---------------- Type-C to Type-C data cable*1 ③---------------------------------------  Battery*1 ④------------------------ Battery storage case*1

⑤---------------------------------- ----  Lanyard*1 ⑥------------------------------ Quick start guide*1 ⑦-------------------------------- Warranty card*1 ⑧---------------------------------------- Sticker*2 ⑨---------------------------------- Warning card*1

Buttons and ports labeled

Basic specifications

luetooth chip: QCC5125 (CPU+DSP dual-core architecture)

DAC: CS43131*2

Bluetooth version: 5.1

Bluetooth codecs: AAC/SBC/aptX/aptX LL/aptX Adaptive/aptX HD/LDAC

USB DAC: Driver-free up to PCM 96k

Display: 0.96 inch 80×160 color IPS

Headphone outputs: Single-ended 3.5mm + Balanced 4.4mm

In-line controls: Supports microphone, volume adjustment, and                         play/pause controls in CTIA protocol

Color: White/Blue

Dimensions: About 55.1×37.5×13.7mm

Weight: About 28.3g (including battery)

Power supply parameter: DC 5V⎓1A

Battery: 3.7V rechargeable lithium battery (compatible with similar                   10440 batteries), not compatible with AAA (1.5V) batteries

Charging time: ≤2 hours

Battery life: About 7.5 hours (single battery)

Output power 1: L+R≥100mW+100mW (32Ω single-ended, THD+N＜1%)

Output power 2: L+R≥220mW+220mW (32Ω balanced, THD+N＜1%) Frequency response: 20Hz~40kHz (-3dB)

SNR: ≥128dB (A-weighted)

Noise floor: PO＜1μV (A-weighted); BAL＜1μV (A-weighted)

Output impedance: ＜0.3Ω (32Ω load)

THD+N: ＜0.0018%(1kHz/-4dB@32Ω)
