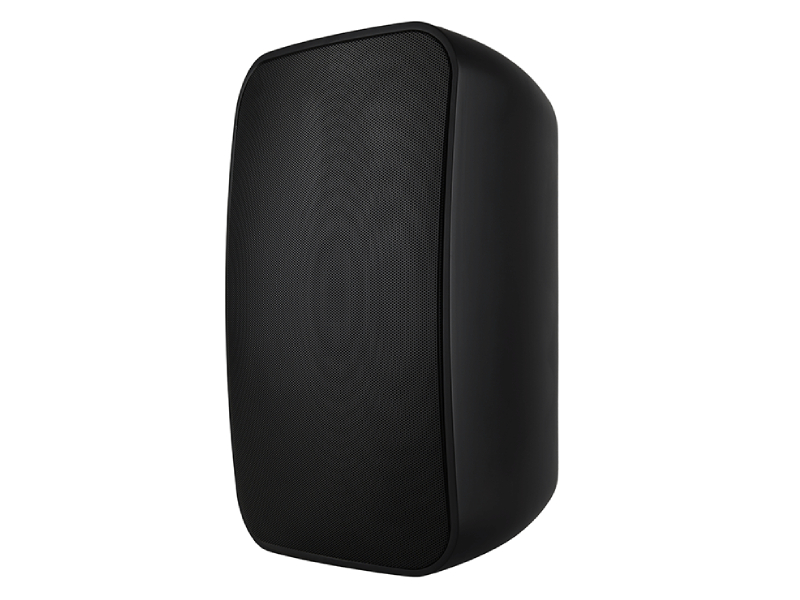

Sonance Professional Series 8 Inch Surface Mount Woofer In Black - PS-S83WT BLACK (Each)
Up to 24 month financing
8" Surface Mount Woofer

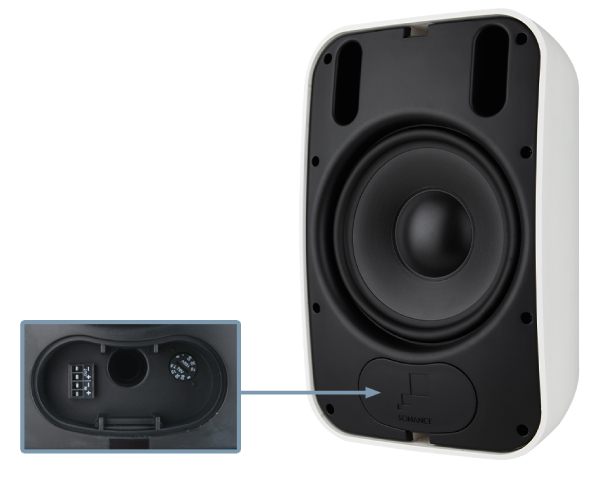

Sonance Professional Series PS-S83WT Surface-Mount Woofer features the Patented FastMount® bracket and front cable connection to speed up the installation process and provide a clean appearance.
The IPX4 rated construction features a weatherproof high-impact, extreme temperature resistant cabinet and corrosion-proof powder coated aluminum grille, lending itself perfectly in both indoor and outdoor applications.
An ultra-high-excursion 8” polypropylene woofer delivers effortless and impactful low bass extension and augmentation, at any sound pressure level, making it the perfect partner for the PS-S43T, PS-S53T and PS-S63T Speakers.
A full-fidelity transformer delivers uncompromised sonic performance in either high (70V, 100V) or low (8 Ohm) impedance.
Additionally, the Sonance PS-S83WT is certified for UL 1480 and UL 2239.

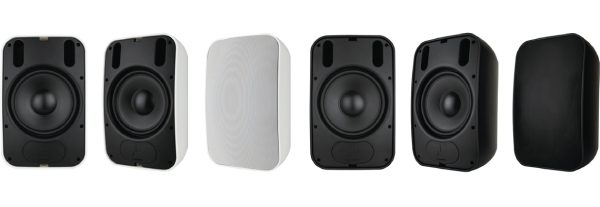

Available in either black or white (paintable).
| Specifications | |
|---|---|
| Frequency Range (-10dB) | 32Hz – 300Hz |
| Frequency Range (-3dB) | 50Hz – 150Hz |
| Power Capacity | 200 Watts Continuous Program Power | 125 Watts Continuous Pink Noise |
| Nominal Sensitivity | 88dB |
| Nominal Coverage Angle | 180 degrees x 180 degrees coverage |
| Directivity Factor (Q) | N/A |
| Directivity (DI) | N/A |
| Rated Maximum SPL | 110dB @ 1 meter (3.3 feet) average, 116dB peak |
| Rated Impedance | 8 Ohms nominal, 6 Ohms minimum |
| Transformer Taps | 120W, 60W, 30W (15W 70V) |
| Crossover Point | 150Hz |
| Overall Dimension | 14.02” Height x 9.01” Width x 8.58” Depth (356mm x 229mm x 218mm) |
| Net Weight | 16.80lbs (7.62kg) each |
| Shipping Weight | 21.49lbs (9.75kg) each |
| Unit of Measure | Each |
| Color | Black or White |
| Grille | Powder Coated Aluminum Friction Fit |
| LF Driver | 8” (203mm) Polypropylene Cone, Butyl Rubber Surround |
| HF Driver | N/A |
| Input Connectors | Front-mounted four pin, Euroblock with loop output connections |
| Safety Agency | UL 1480, UL 2239 |
| Mounting Bracket | U-Bracket with Sonance FastMount |
| Environmental & UV | Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529 IPX4 splash-proof rating |
